2* Combo ports + 8* PoE ports gigabit #PoEswitch Please contact [email protected] for more if you are interested in.

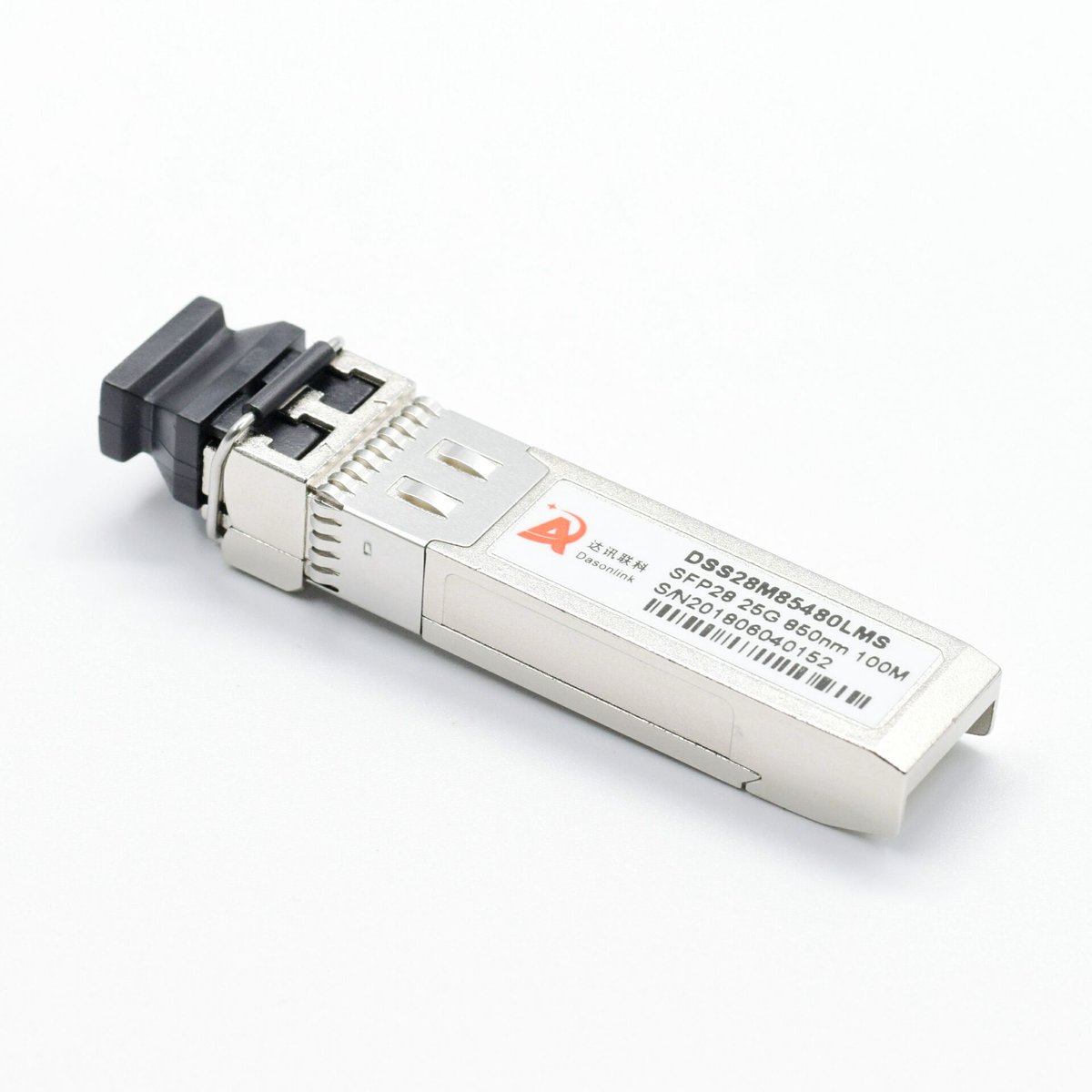

#25G #SFP28 SR, Dasonlink DSS28M85480LMS is an 850nm 25Gigabit SFP28 transceiver. It is designed to transmit and receive optical data over 50/125μm MMF and support up to 70m@OM3 MMF and 100m@OM4 MMF for one-lane 25G/100G Data Center cabling networks with customized compatibility.

Dasonlink 40G QSFP+ to 4SFP+ direct attached copper cable 3m

Today, 12th Feb., 2019, we are back to work after our Chinese New Year. Hope we all have a prosperous and healthy year of 2019.

#100GQSFP28OpticalTransceivers List from Dasonlink for your information.

Dasonlink 10G SFP+ to SFP+ AOC 1 meter for #datacentersolutions, please contact [email protected] for any query.

Have a Blessed #Thanksgiving from Dasonlink!

DSP-192N Dasonlink #10GcopperSFP+ RJ45, some customers specify #Broadcom chip plan. It can reach 80 meters with stable, high-performance.

Back to office today. It helps to expel the monster called "Nian" which is afraid of anything red and will keep far away from it. One friend told me that his wife was gonna take an eye surgery before our holiday, hope she will recover soon. Good luck and health for all, 666!

#10GSFP +20km normal output optical is max +0.5dBm, #+2dBm is also available of ours for high fiber #linkloss. Discussion before transactions is really necessary for different projects solutions of #computerrooms, #basestations, or #datacenters.

DSS28CXX480L10 #SFP28 #CWDM transceiver built-in #CDR for 25GBase-CWDM up to 10km over SMF of 1270-1610nm dual LC. It's used for #25GEthernet, #telecom and #datacenter, compliant with SFP28 MSA, #CPRI, eCPRI standard. #EML for 1470-1610nm, and DFB CWDM for 1270-1370nm.

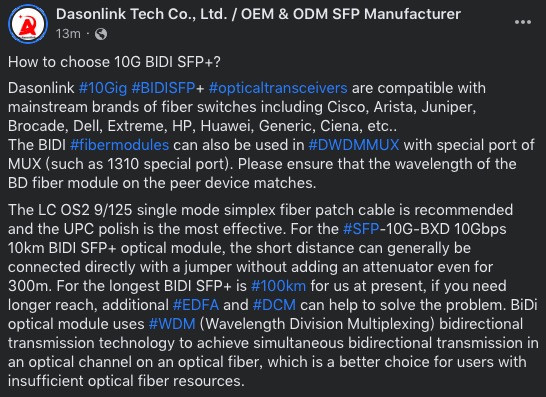

How to choose 10G BIDI SFP+? #10Gig #BIDISFP+ are compatible with mainstream brands of fiber switches including Cisco, Arista, Juniper, Brocade, Dell, Extreme, HP, Huawei, Generic, Ciena, etc.. Can also be used in #DWDMMUX with special port of MUX (such as 1310 special port).

Check out my latest article: OM5 Fiber Cable Application linkedin.com/pulse/om5-fibe… 来自 LinkedIn

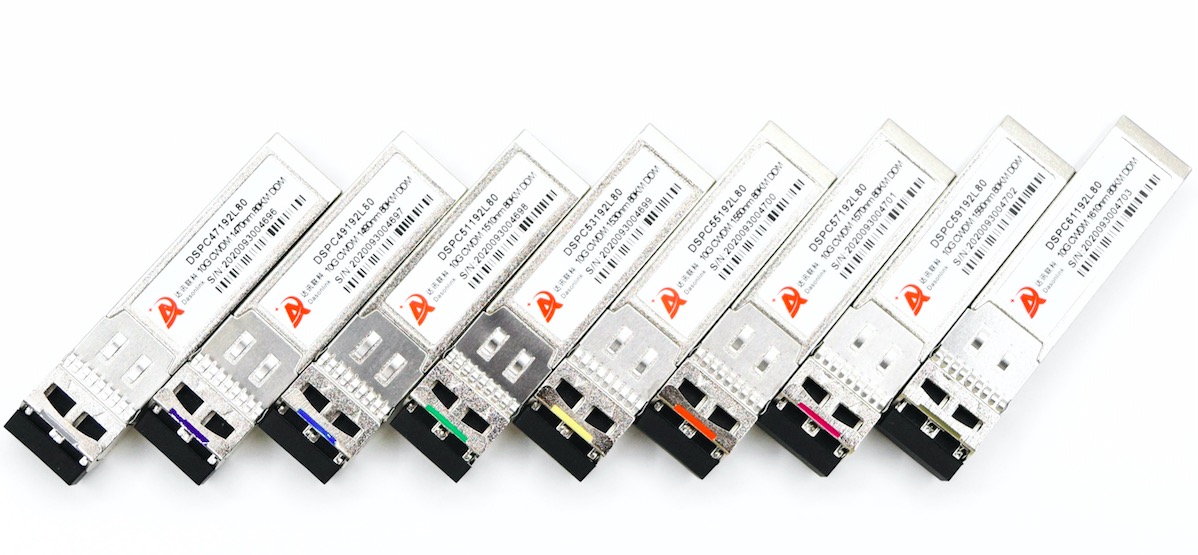

#10GCWDMSFP+ #transceivers, 18 channels #1270nm ~ #1610nm with 20nm intervals, #10km to #80km over single mode fiber. You can choose wavelengths as per the channel range of the MUX/DEMUX, if not and only the module is directly connected, any can be chosen. lnkd.in/gQCHBYw6

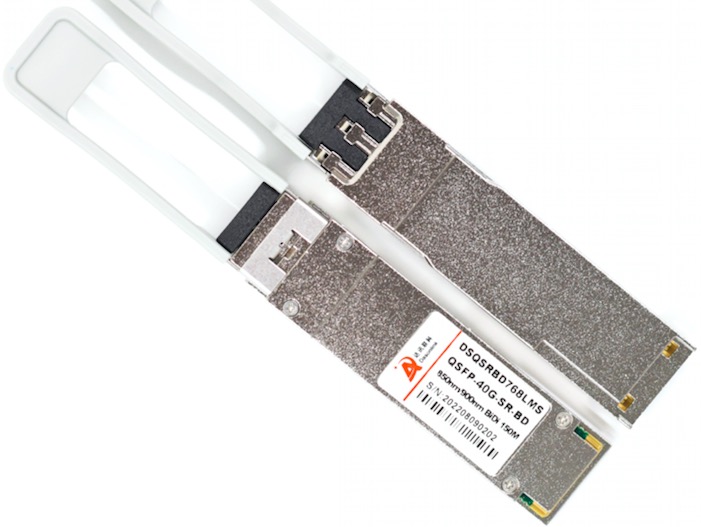

QSFP+ 40G SR BiDi #transceivers are with #LC connectors while the QSFP+ SR4 uses #MTP/MPO. All existing 10G MMF cables can be reused, resulting in zero-cost cabling migration from 10G to 40G. They are cost-effective for data centers where require short-reach, limited fibers.

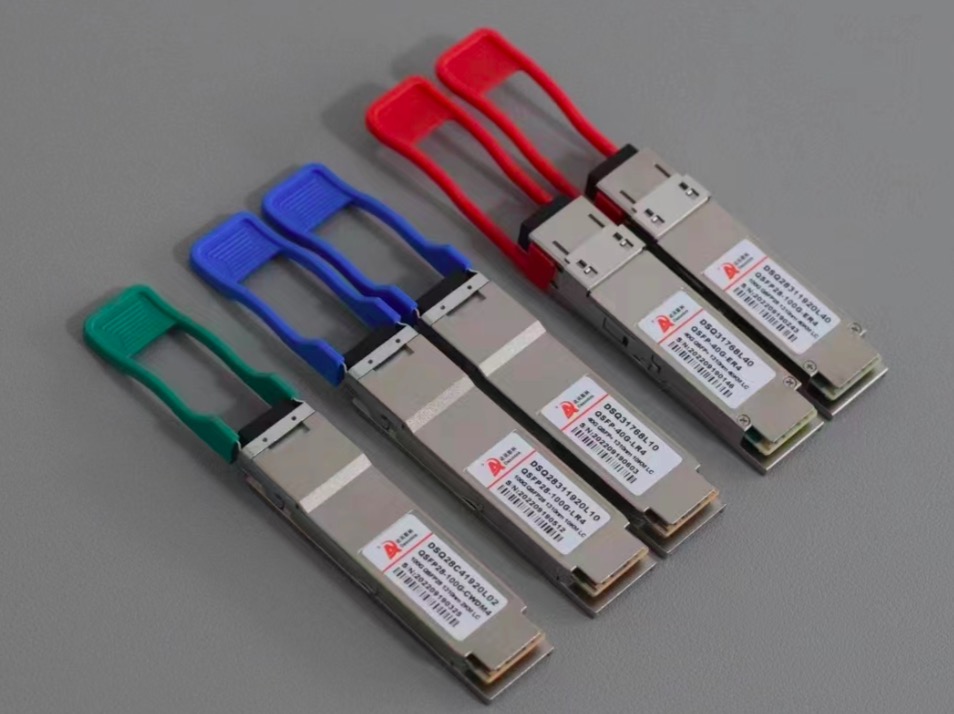

Is 100G QSFP28 backward compatible with 40G? #100G #QSFP28 (4x25G) form factor has just 4 electrical lanes. A 100G QSFP can only support a 4x10G or 4x25G electrical interface, which can be used as 4x10GbE or 4x25GbE, instead of 10x 10GbE.

#10GBASE-T #Ethernet #MediaConverter * #Copper to Fiber interfaces: 10/100/1000/2500MBase /10G #RJ45 to #SFP+ * IEEE 802.3an Compliant * Supports duplex SM/MM CWDM, DWDM fiber transceivers * Supports up to 100m over CAT-6A and CAT-7

Q: If I attach the #QSFP28 #CWDM4 optic to the 1310nm channel on the MUX, can I get 100G out of the other MUX on the other end? A: Yes, it can be connected to 1310 special port of CWDM #MUX/DEMUX for signal transmission. It uses 1271, 1291, 1311, & 1331nm with 1310 port ± 50nm.

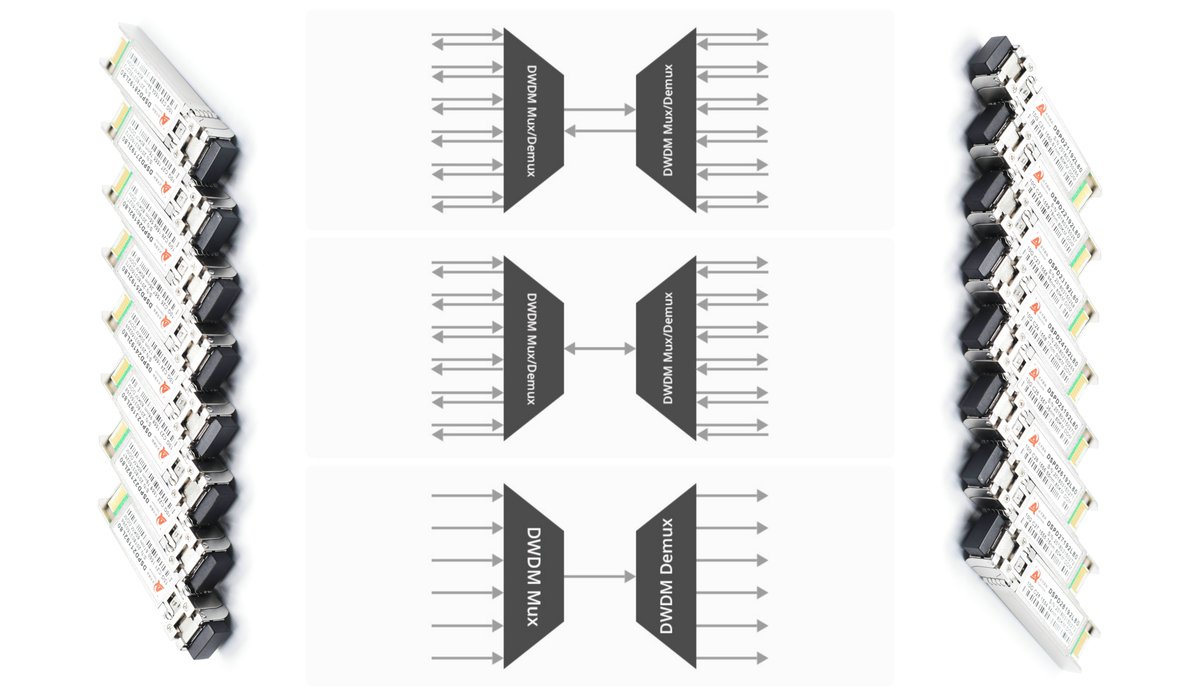

Q: How is #MUX & #DEMUX & #10Gigabit #DWDMSFP+ #FiberOpticalTransceivers applied in #DWDM system? A: 1. Dual-fiber DWDM Mux/Demux uses two optical fibers. 2. Single-fiber bi-directional transmission. 3. Single-fiber unidirectional transmission.

Back to work after a long holiday of Spring Festival. For a higher salary and a better workplace! 😁
