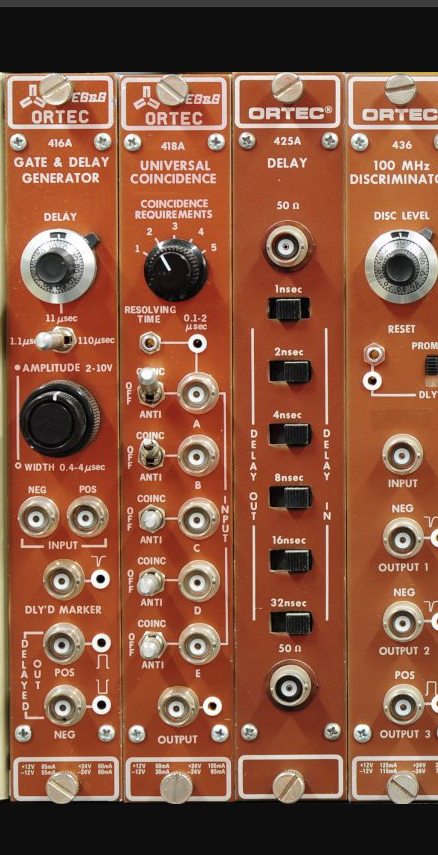

Universal Coincidence. Someone needs to develop a eurorack Universal Coincidence, just for the name alone

Playing around with multiple types of sync on the #AS3340 VCO on the #Zoxnoxious synth. A comparator sets up a capture window and different sync signals sent on positive and negative window edge. The window is adjusted via a couple LFOs.

Working on a new interface for #Zoxnoxious modules in VCV Rack. This wireframe has a ways to go but it's getting there. The "Out2" section needs to go vertical right, among other changes.

I think this is shaping up a bit better. Took some inspiration from NIM modules, trying to give it more of a scientific feel. That will come about more now that the layout is about done.

Wrapping up layout, starting to add some style and character to the panel. Still looks way too modern and needs a utilitarian/imperfection aspect to it.

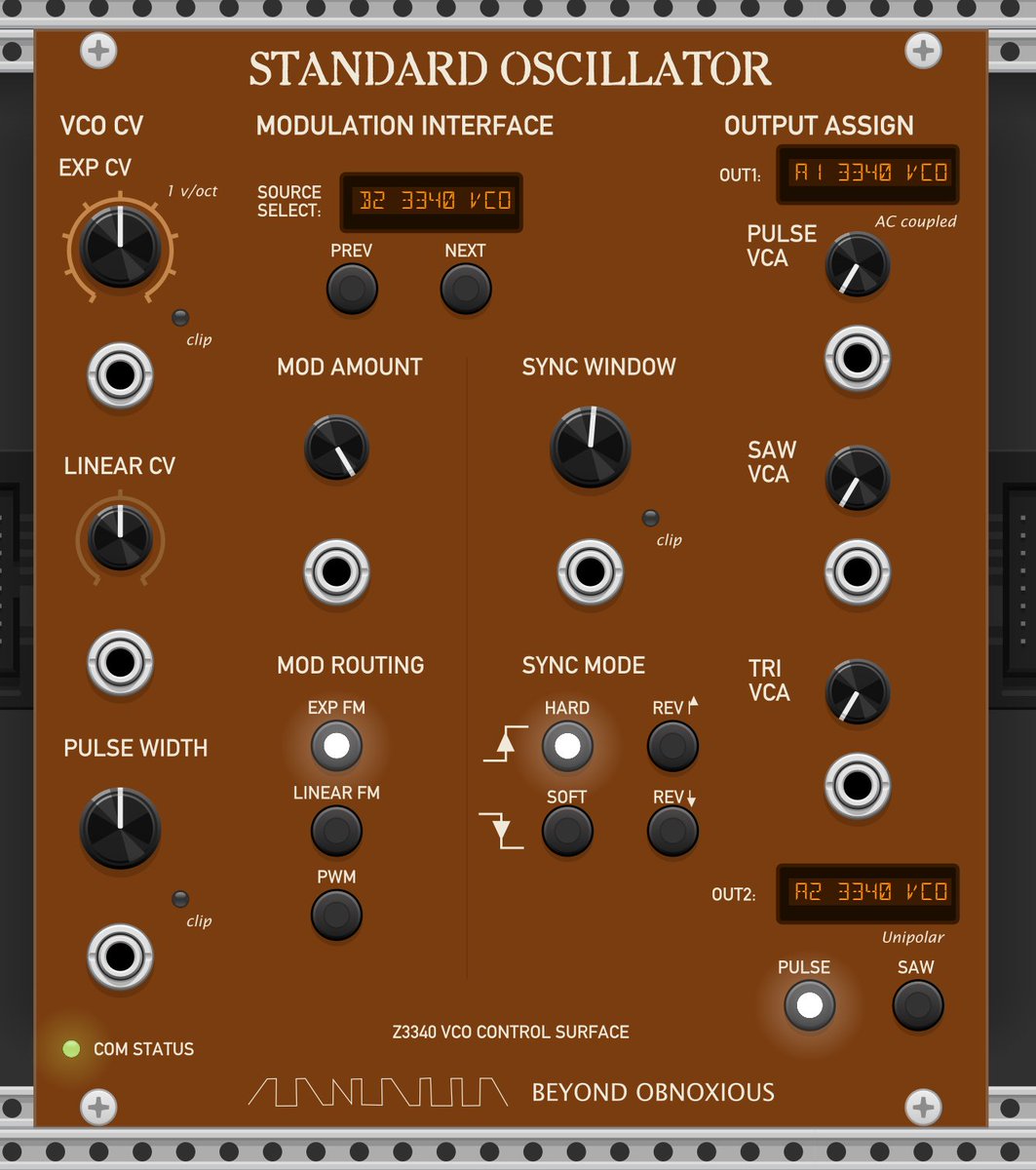

Looking better with LED fonts for the dynamic text. Still got to add some knob scales around most all knobs. And de-digitize it in a way that works ok with VCV Rack; it looks too uniform/exact for what I'm going for.

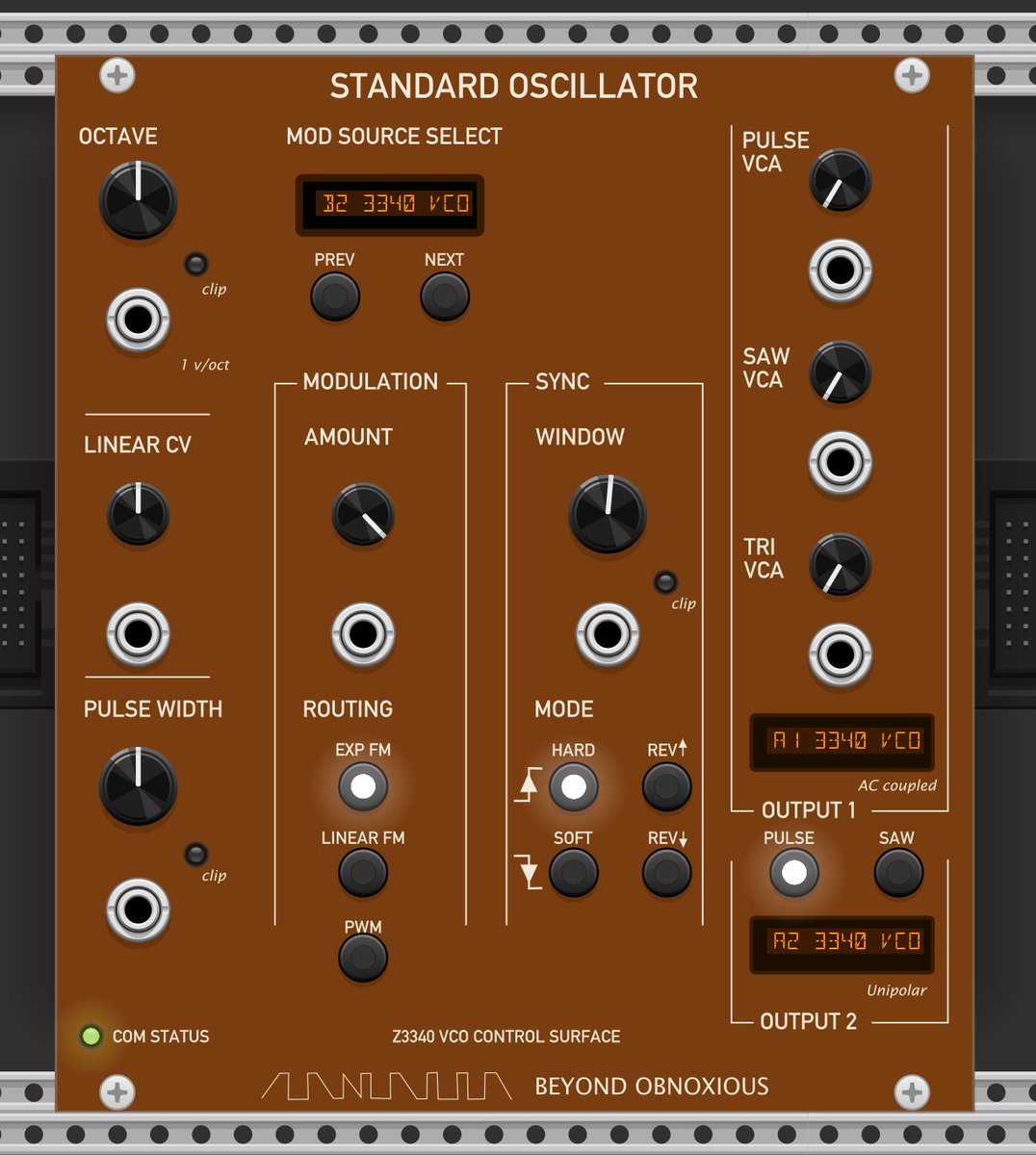

A bit better but I started to go off-grid in a bad way. Too busy in lower right quadrant. Labels are whackadoo. Some text too close to buttons and others are in WTF. Next steps get back on-grid. I might also move the right column to horizontal knob-jack instead of vertical.

didn't quite leave enough real estate to fit knob scales in place. Oops. Need to fix that.

Getting very close. Jacks look a bit bland now that the knobs have scale

Proof of concept Turns-Counting Dial in #VCVRack. No artwork yet, just the function. Multi turn knob with readout increment (or decrement) as knob passes 12 o'clock. Add in some approp artwork for this and it should look pretty good.

This is starting to look a lot better. The font is coming around. Adding BNC connectors (which still need a bit of work). Some texture on the panel.

Logical AND?

Pulsing glowing text in VCV Rack. Tried it. Abandoning it.
