An open-source research group dedicated to improving the GameCube Controller and demystifying the potentiometer oddity degradation effect, or PODE

ID: 1495866967202304003

calendar_today21-02-2022 21:04:23

13 Tweet

557 Followers

8 Following

rienne, orca mother (orca orders open now!!) (@riennezelda) 's Twitter Profile Photo

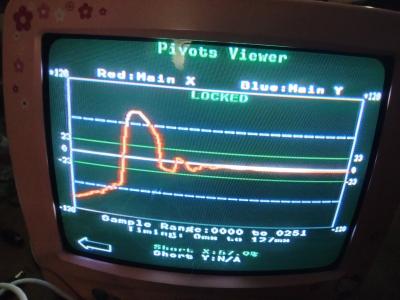

here's an example that's a little more drastic, correction of a potentiometer degraded to the point i would recommend replacement this failed pivot corrects back to a functioning and snapback-less pivot input on hardware thought previously to be almost fully worn out

here's an example that's a little more drastic, correction of a potentiometer degraded to the point i would recommend replacement

this failed pivot corrects back to a functioning and snapback-less pivot input on hardware thought previously to be almost fully worn out
rienne, orca mother (orca orders open now!!) (@riennezelda) 's Twitter Profile Photo

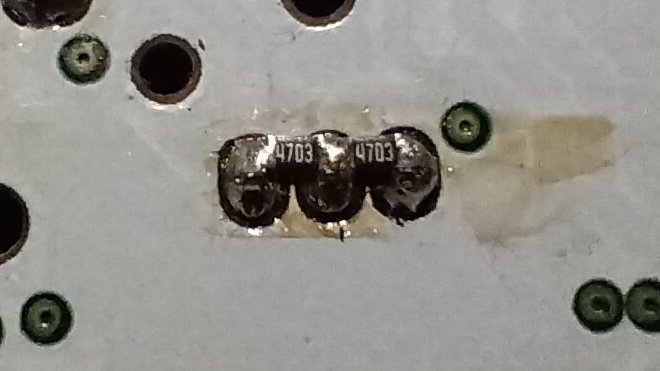

rocket guide: pode resistors solder two 470k ohm resistors across the potentiometer poles as shown to greatly reduce PODE on degraded controllers fix worn out controllers with .50 worth of parts achieve variable pode reduction with two matching resistors between 300k-1.2m ohms

rocket guide: pode resistors

solder two 470k ohm resistors across the potentiometer poles as shown to greatly reduce PODE on degraded controllers

fix worn out controllers with .50 worth of parts

achieve variable pode reduction with two matching resistors between 300k-1.2m ohms
The PODE Collective (@podecollective) 's Twitter Profile Photo

PODE Resistor Module Circuit Diagram Can be used inline w/capacitors Use one switch at a time with both switches on the same value (both switches 1 only, 2 only etc) 1= 1200K ohms 2= 800K ohms 3= 600K ohms 4= 500K ohms 5= 400K ohms 1 is the smallest amount of PODE correction

PODE Resistor Module Circuit Diagram

Can be used inline w/capacitors

Use one switch at a time with both switches on the same value (both switches 1 only, 2 only etc)

1= 1200K ohms
2= 800K ohms
3= 600K ohms
4= 500K ohms
5= 400K ohms

1 is the smallest amount of PODE correction
The PODE Collective (@podecollective) 's Twitter Profile Photo

An official update -- We've started development on a totally new analog device for Melee: the Wavebox! Anticipating small-batch availability by late 2023. We will also be publishing open-source hardware files and documentation for Heartbeat Modules in the very near future!

The PODE Collective (@podecollective) 's Twitter Profile Photo

An update: Wavebox prototype has officially been finished; first batch will be made over the next couple of months. Work has begun on production models and we will assess needed changes as testing progresses. First-line production start date ETA Q1 2024. Working name is ORCA.

Cardosi Customs LLC | $60 Send-In Phobs (@cardosicustoms) 's Twitter Profile Photo

The moment you've all been waiting for. Thank you for all the support, thank you for all the kind words and encouragement. It's been so much work trying to get this thing to be perfect. Special thank you goes out to the names written in literal gold on each board. No matter how

The moment you've all been waiting for.

Thank you for all the support, thank you for all the kind words and encouragement. It's been so much work trying to get this thing to be perfect.

Special thank you goes out to the names written in literal gold on each board. No matter how
