Fixed compatibility issue with Megaswitch HD and Mega Everdrive Pro, in Master System mode, if HDMI was constantly rebooted. A 22nf ceramic capacitor needs to be added to the B30 input of Board-C.

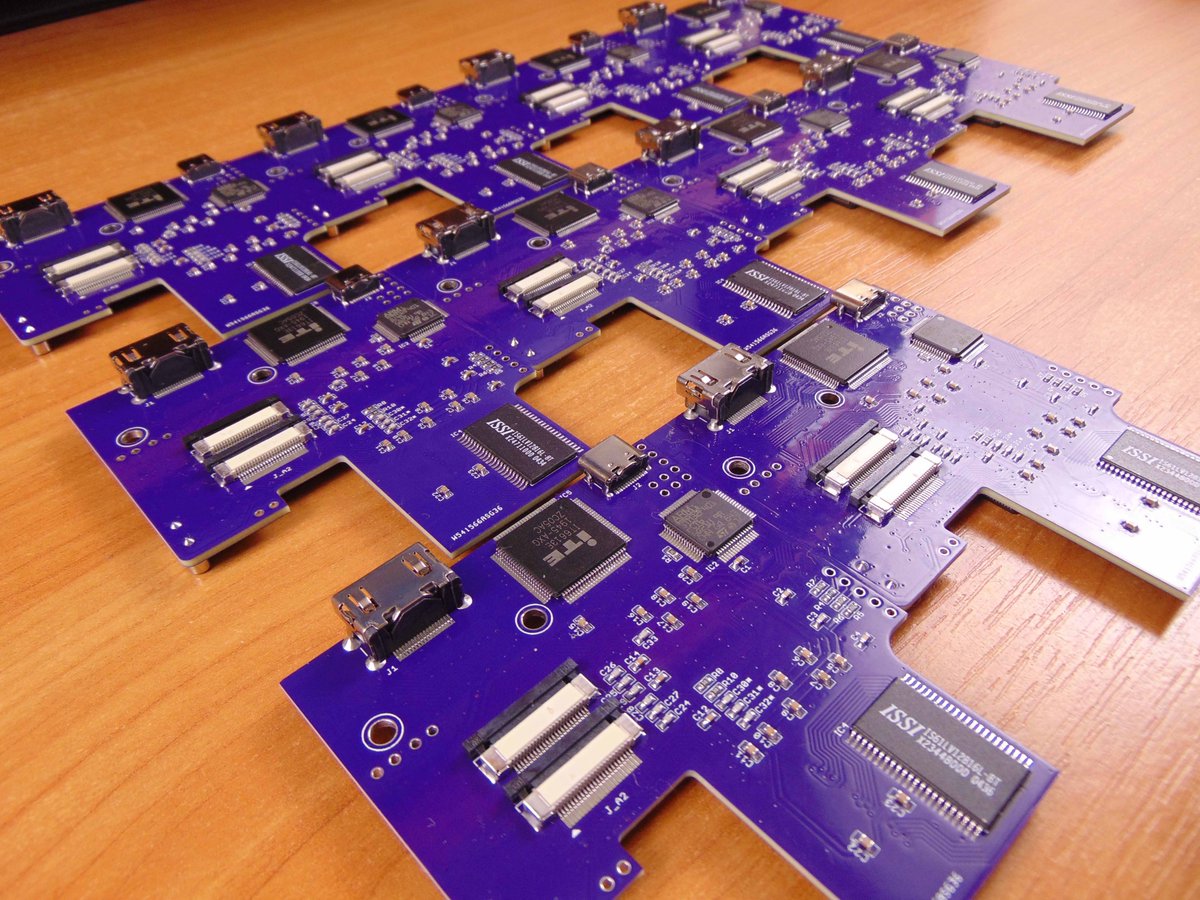

I soldered and completely tested Board-B. I'm starting to solder Board-A boards for these kits.

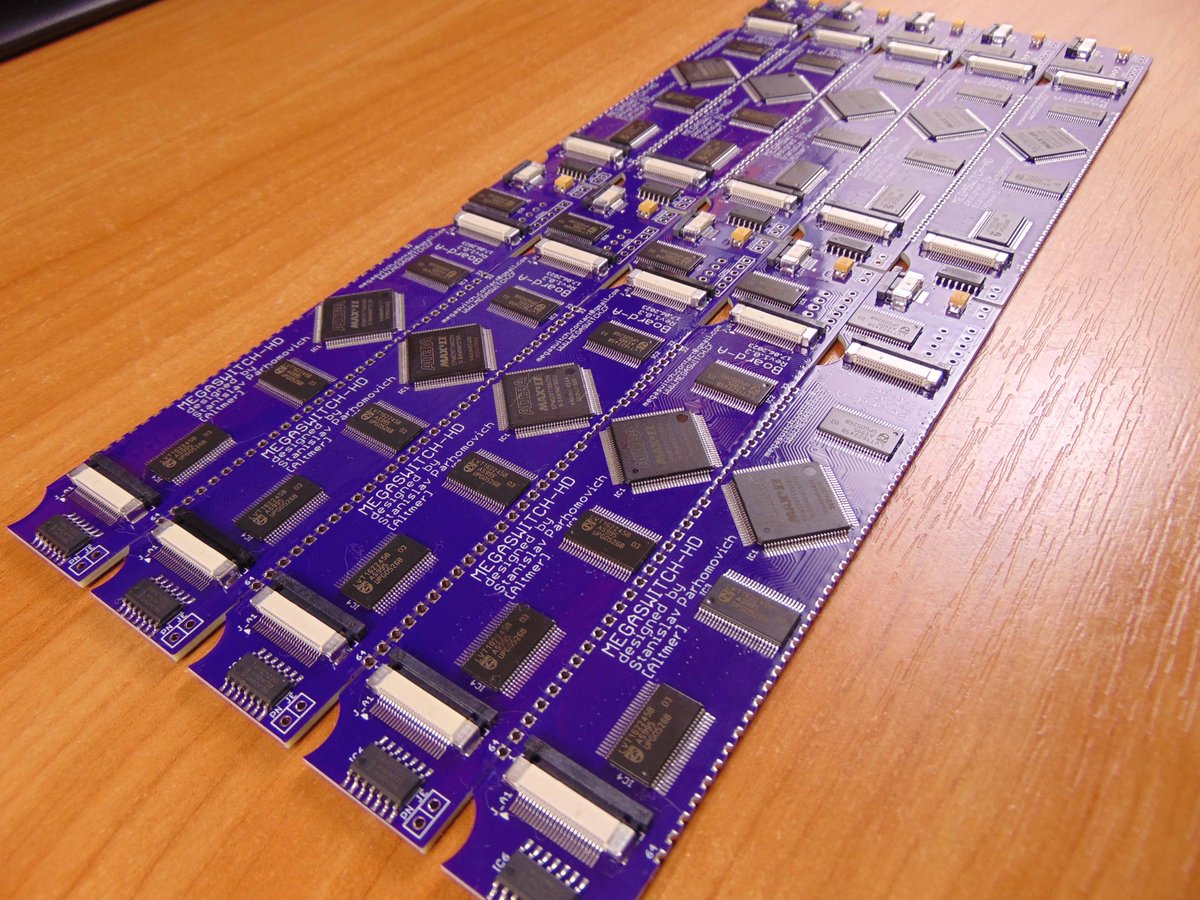

I soldered and completely tested Board-A. I'm starting to solder Audio-ADC and Board-C boards for these kits and send them out.

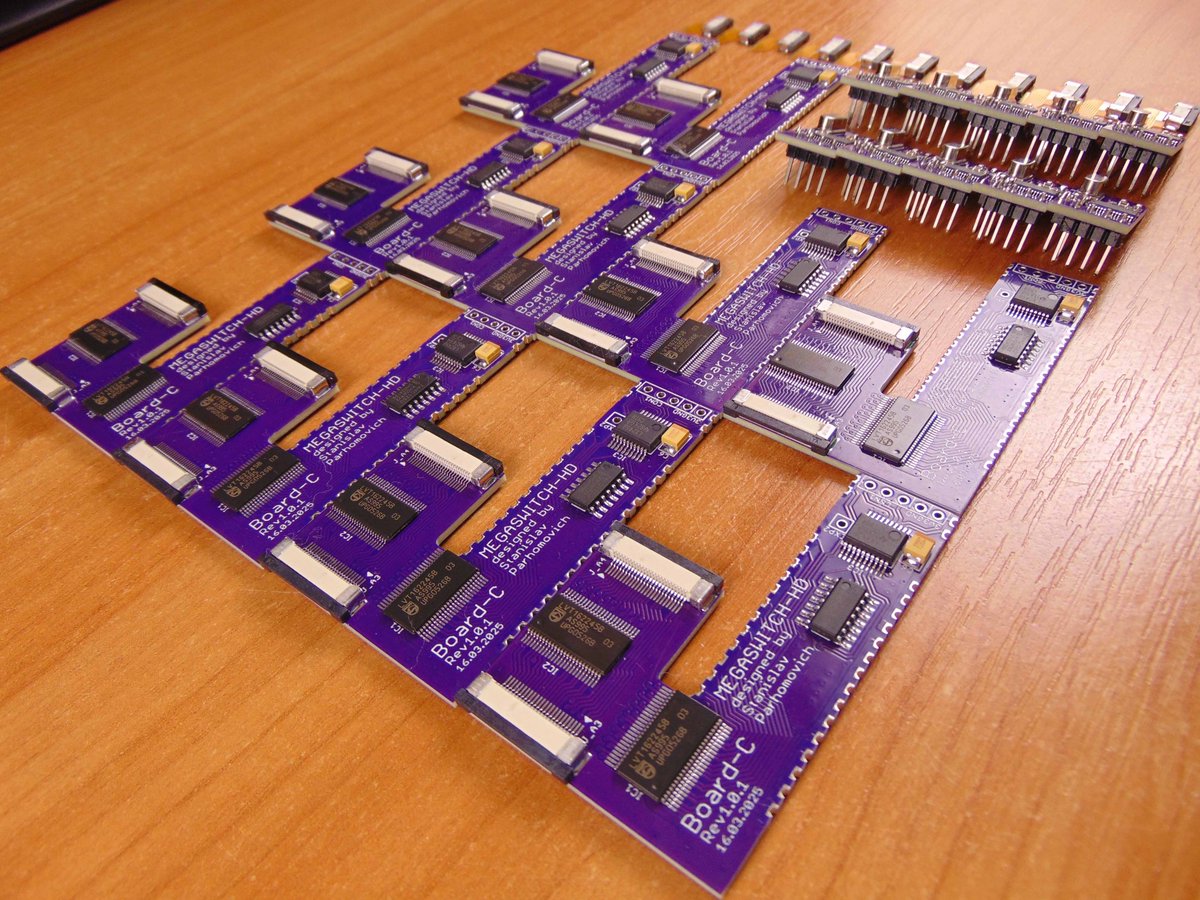

Soldered and fully tested some Audio-ADC and Board-C boards. Ready to ship.

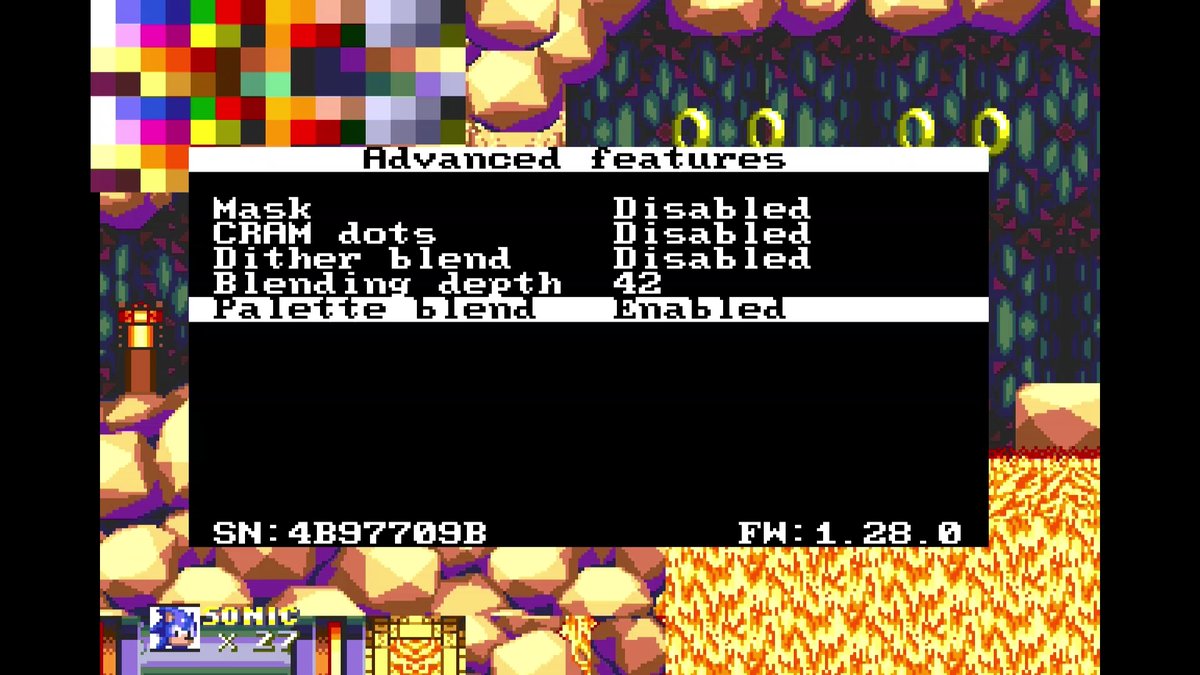

Added Palette Blending to the Megaswitch HD. New firmware v1.28.0 is available at megaswitchhd.com Also available is a link to a stream with testing.youtube.com/live/u1YtPYNTj…

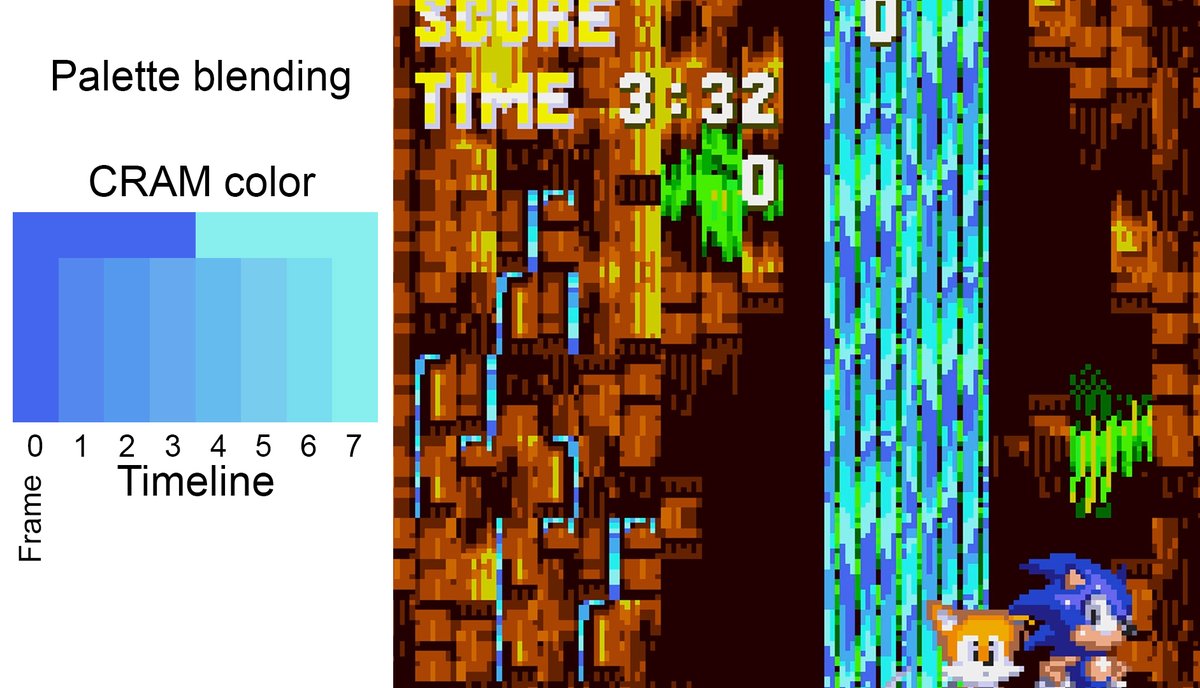

A small illustration of how CRAM generates an intermediate color when blending a palette. This doesn't increase resolution, but creates a smooth, cyclical color transition.

The excessive floor blur in the Sonic 3 special stages has been fixed. Now, when Palette Blend is enabled, the floor remains sharp as in the original. Patch v1.28.1 is now available. megaswitchhd.com/megaswitch-hd/…

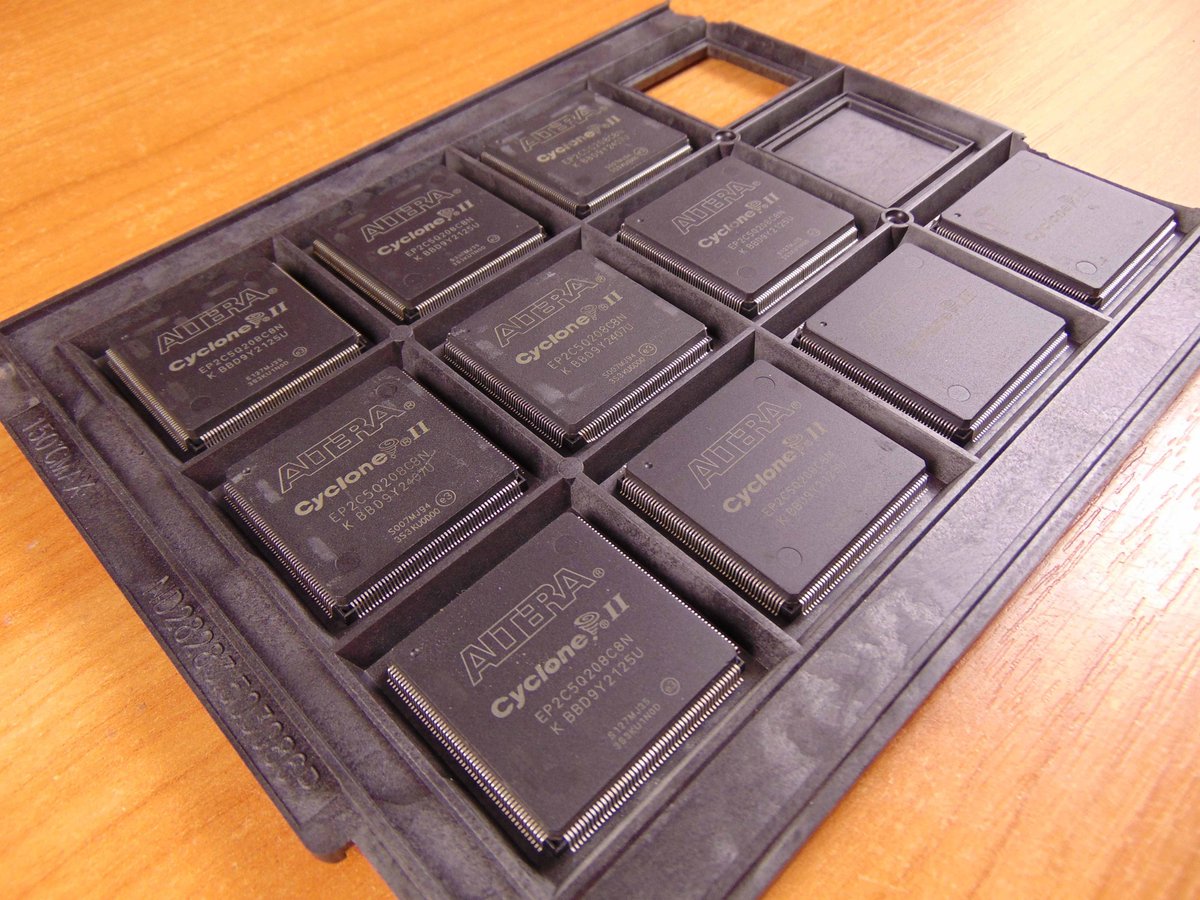

Received FPGA chips for Genesis/MD digital video output. Megaswitch HD specification megaswitchhd.com

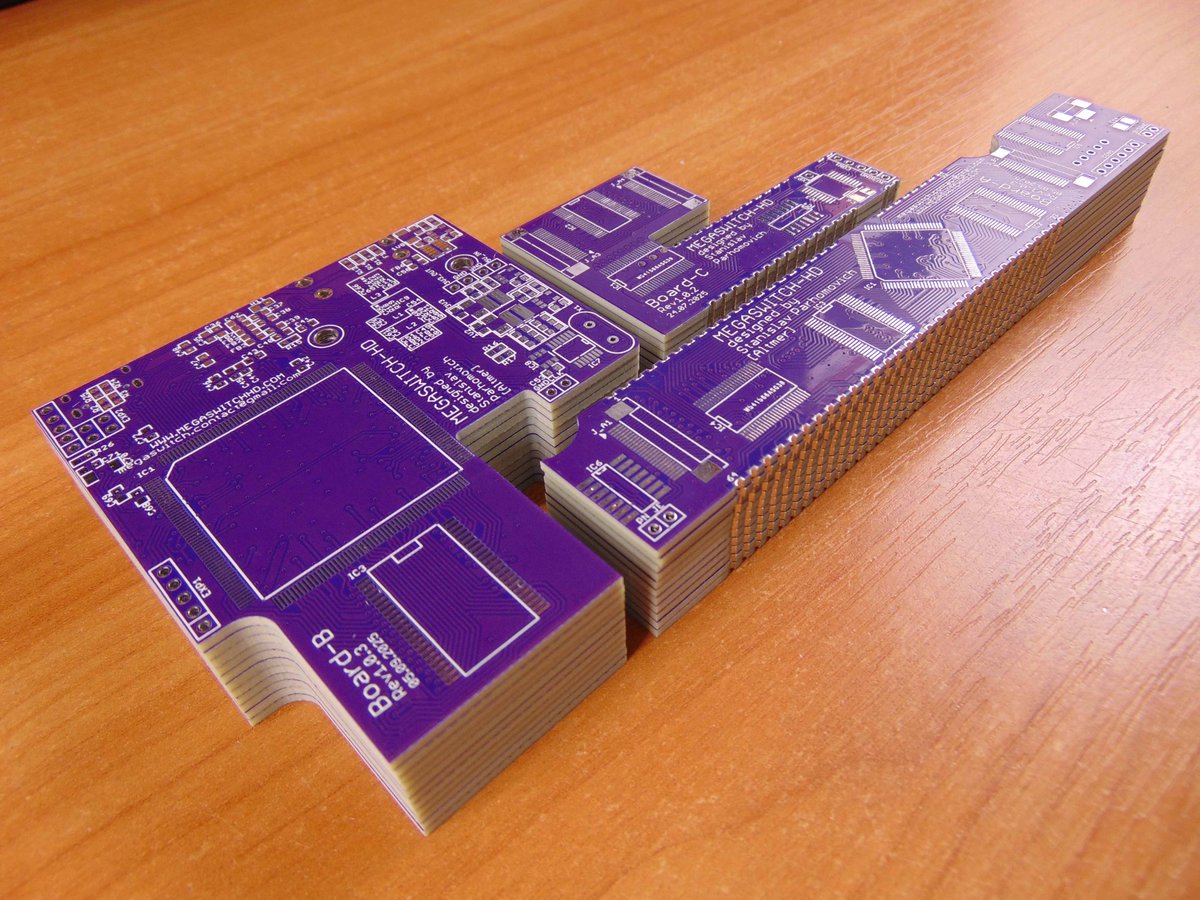

Received PCB Megaswitch HD, digital video output for Genesis/MD. I'm starting to solder.

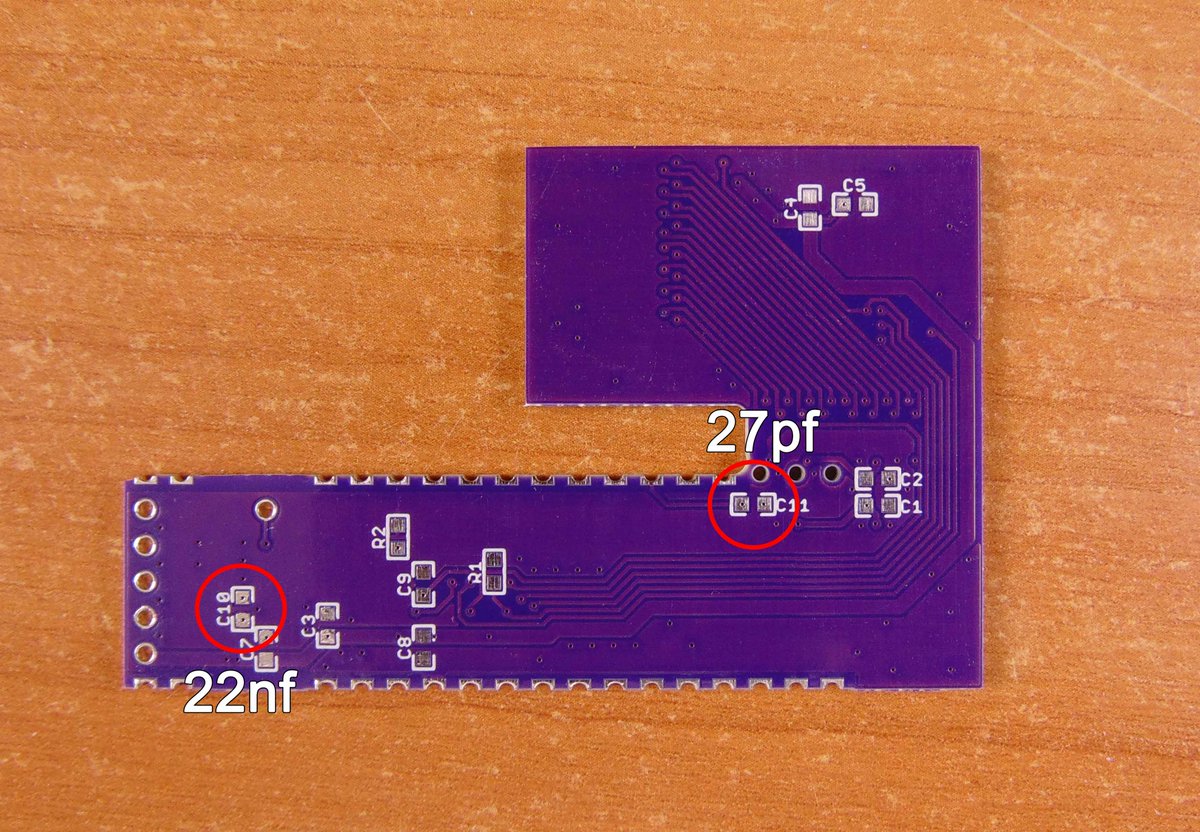

New Board-C revision for Master System mode. Issues with the Mega EverDrive PRO were previously discovered and fixed with a 22nf capacitor. On one console with a cold VDP, there was interference on the ZCLK, and a 27pf capacitor helped. Both capacitors are now in the new revision

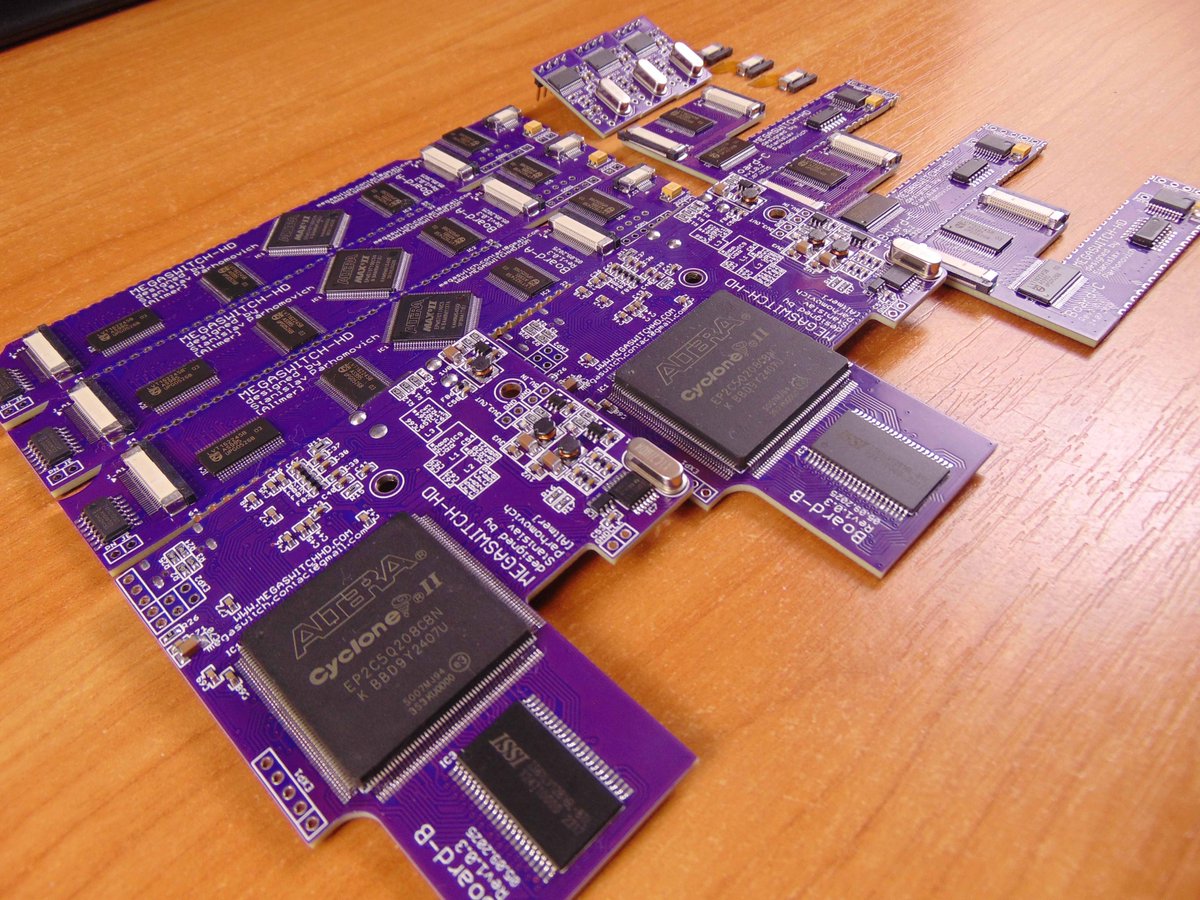

I soldered and fully tested several Megaswitch HD kits. Digital video output for Genesis/MD. megaswitchhd.com

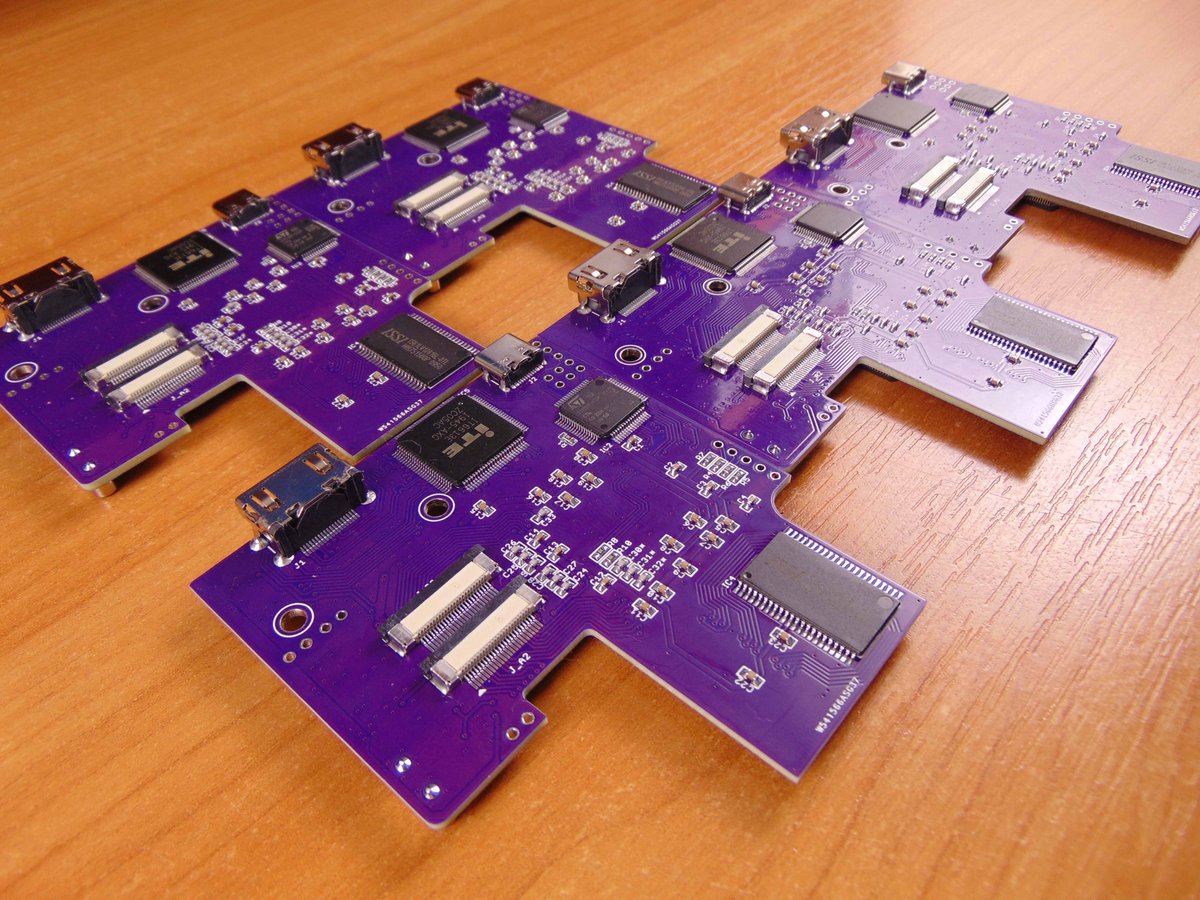

I soldered and completely tested Board-B. I'm starting to solder Board-A boards for these kits.

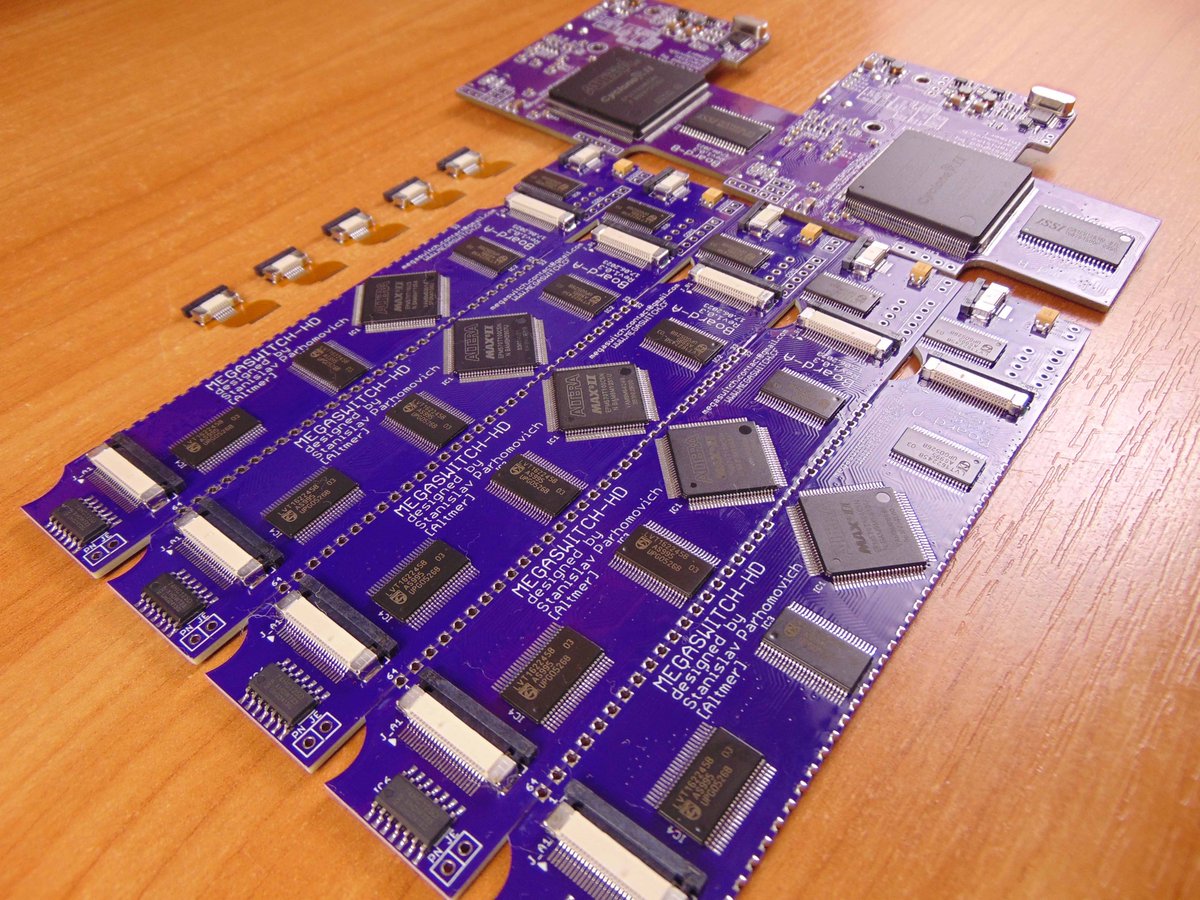

I soldered and completely tested Board-A and Board-B boards. I'm starting to solder Board-C boards for these kits. Digital video output for Genesis/MD. megaswitchhd.com

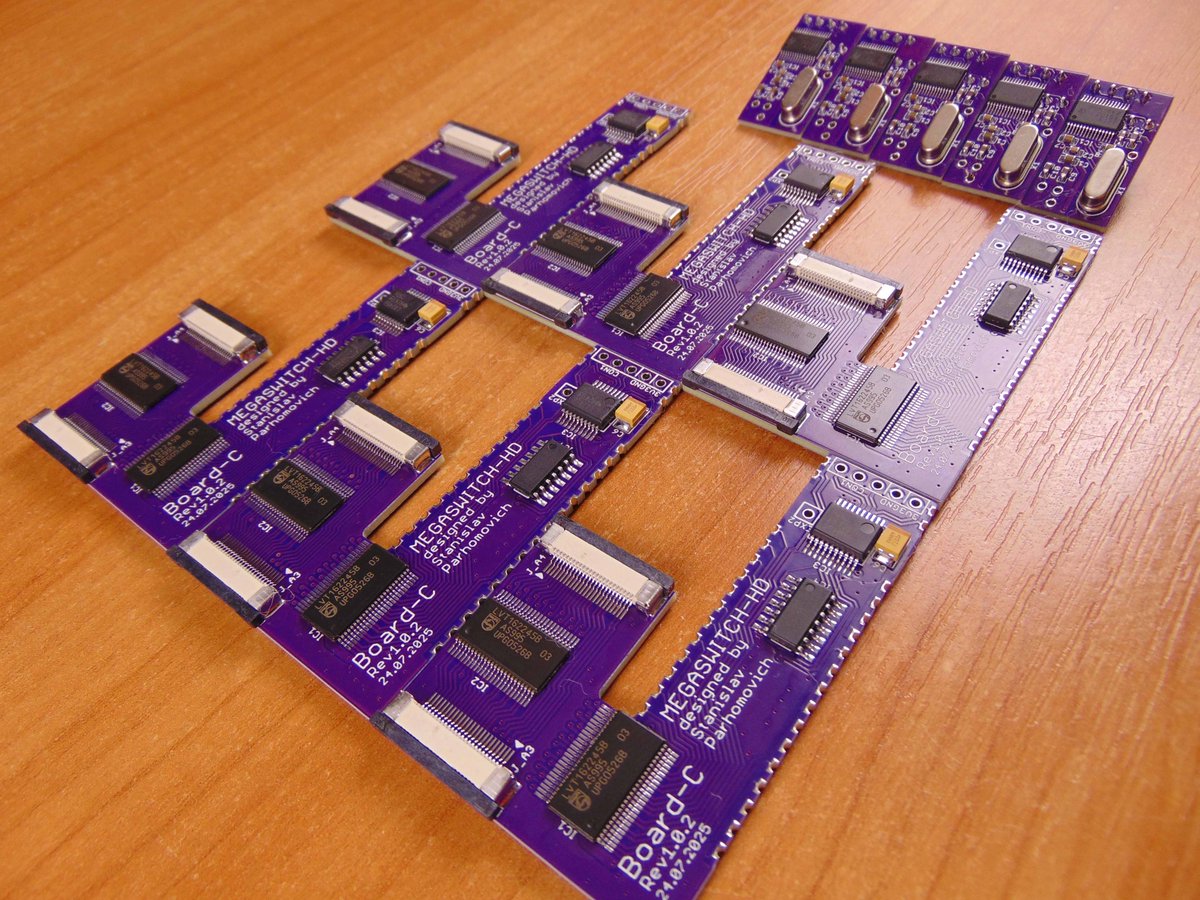

Soldered and fully tested some Audio-ADC and Board-C boards. Ready to ship.

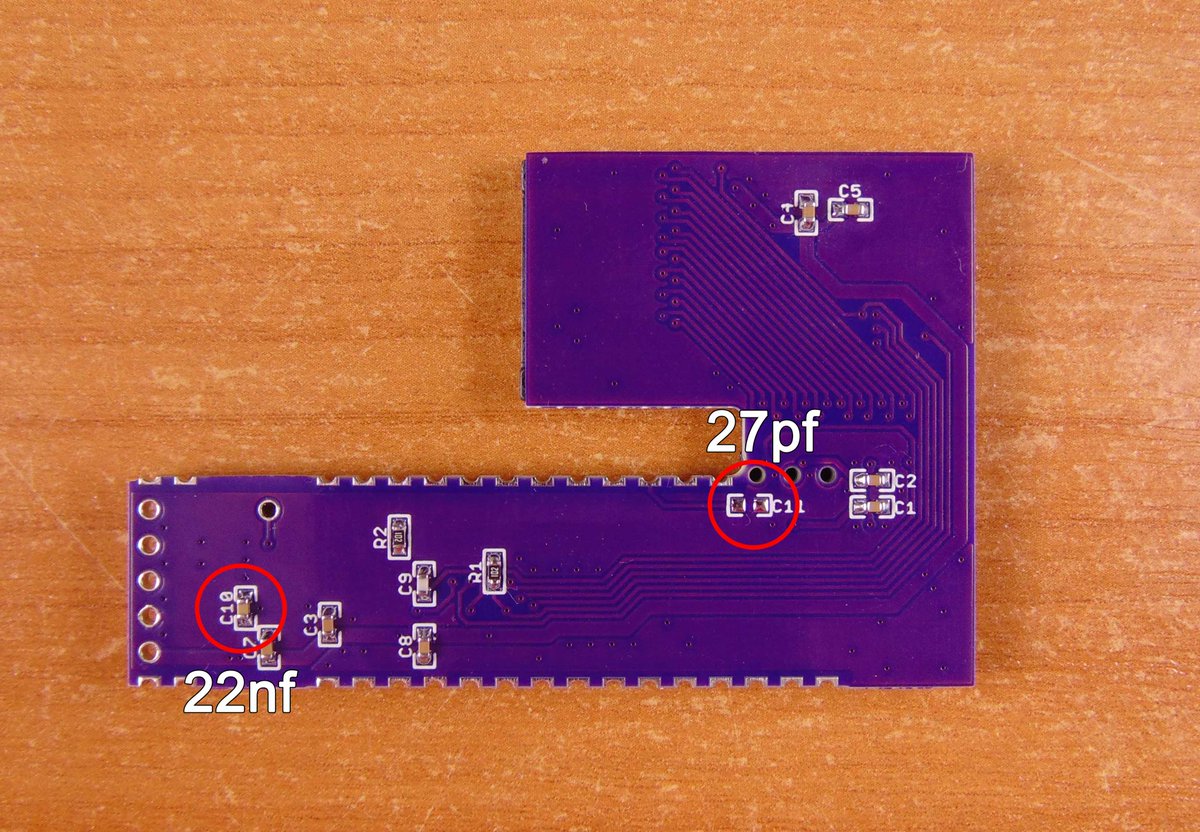

Testing the new Board-C with 2 new capacitors showed The 22nf capacitor (for MegaEverdrive Pro) works perfectly and does not require soldering an external one. The 27pf capacitor (ZCLK filter) cannot be installed on Board-C boards. It only worked once on the VA2 console.

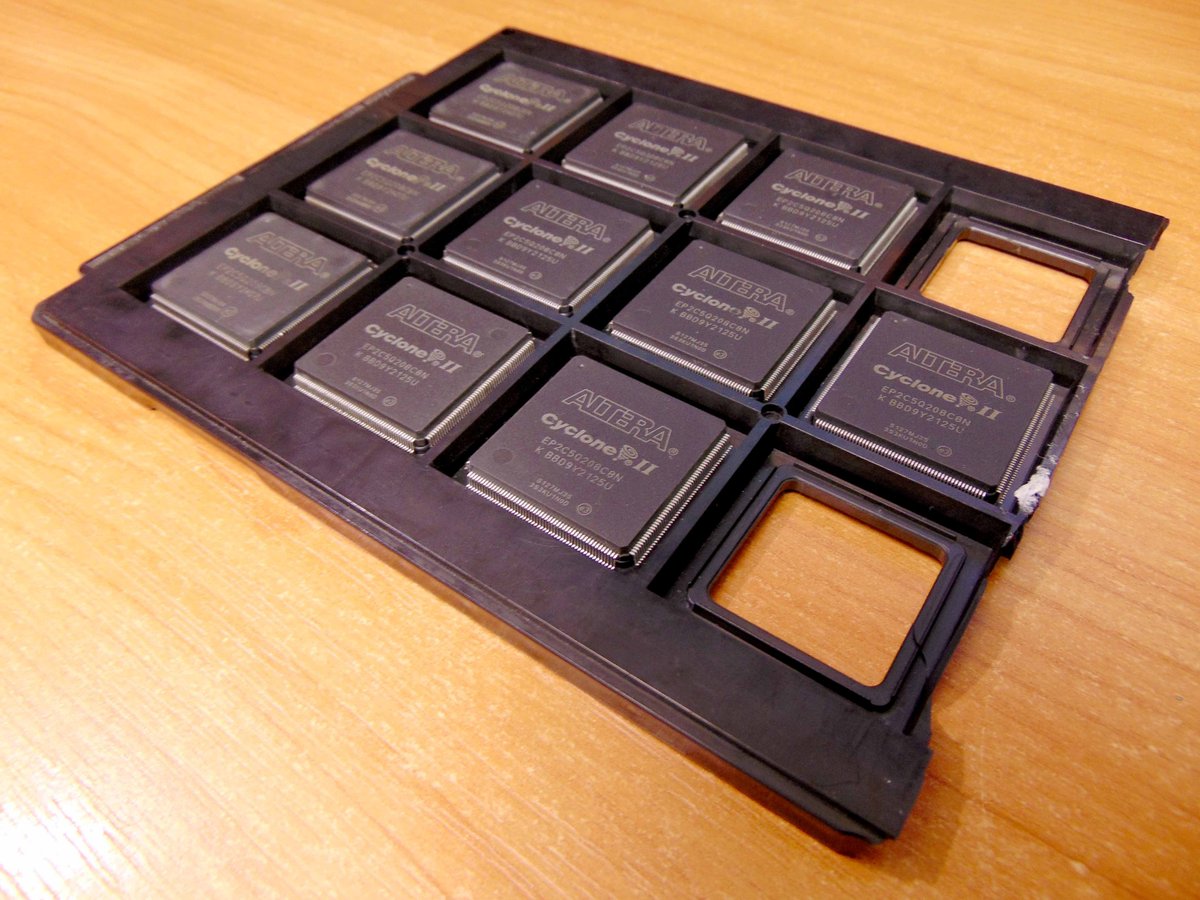

Received FPGA chips for Genesis/MD digital video output. Megaswitch HD specification megaswitchhd.com
