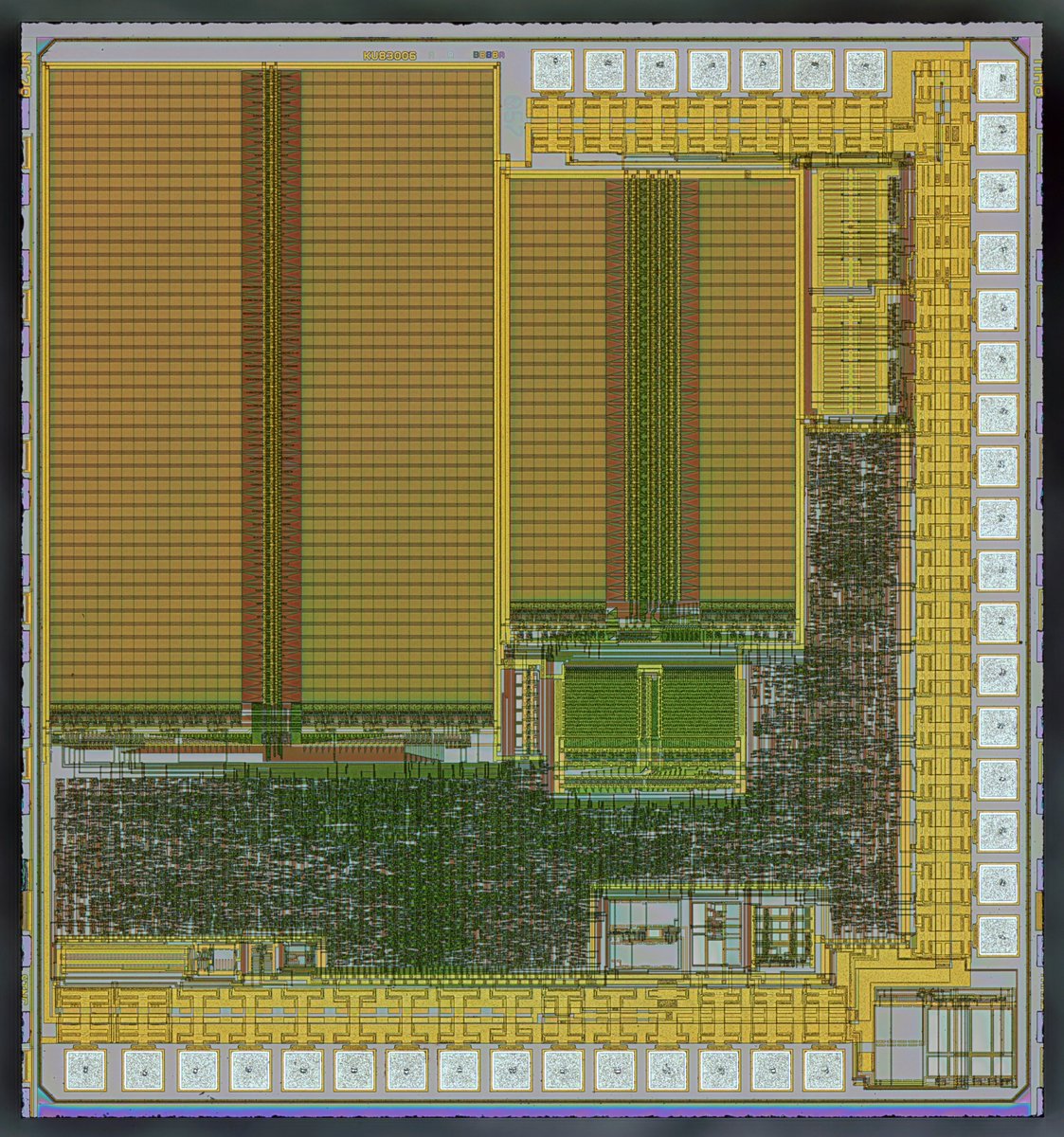

Hitachi HD6435368 (1994) The H8/536 is a 16-bit single chip CMOS microcontroller with 2kB RAM, 62kB mask ROM, UART, 10-bit ADC and 3 channel PWM. The H8 family was very popular and used in many consumer electronic products, notably CD-ROM drives and VCRs.

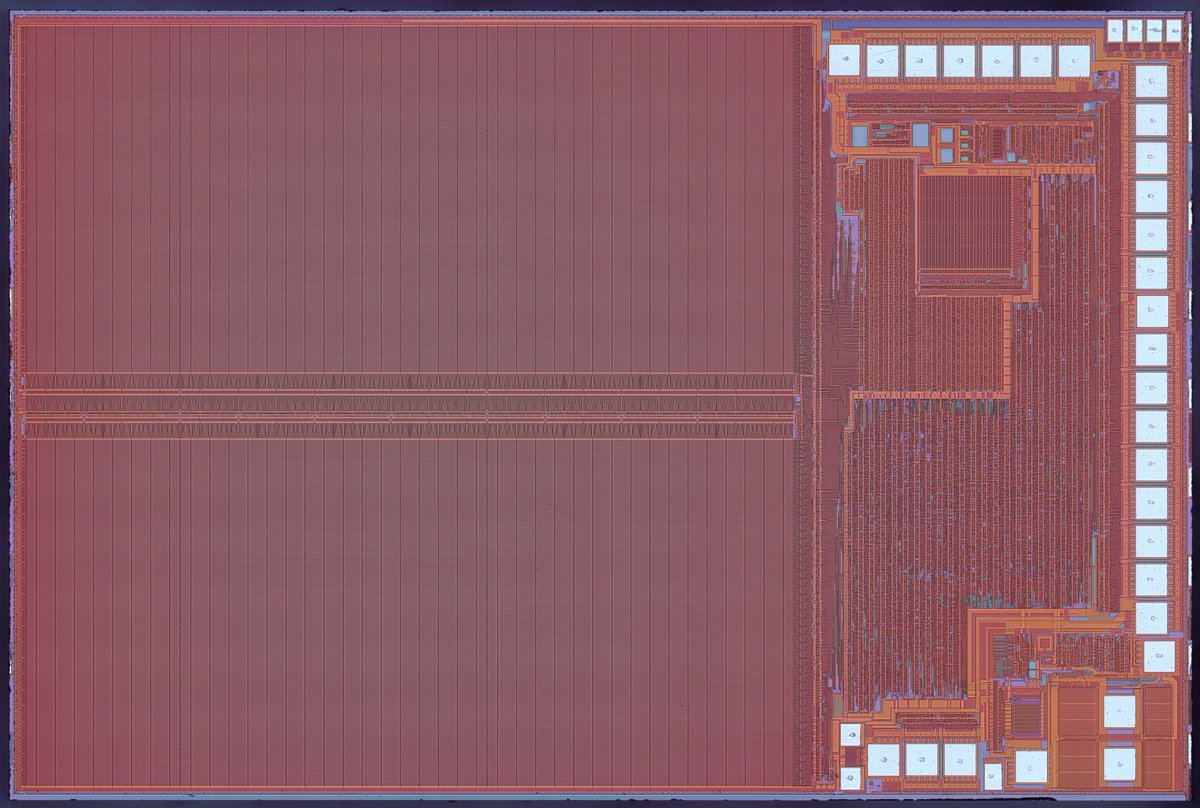

Nyquest NY5C265C 4-bit Sound Processor MCU This IC features a single metal layer, despite the fact that it's from 2018, and contains a 4-bit RISC MCU. High res: ic.onidev.fr/map/NY5C265C.h… Thanks to Siliconinsider for the dies!

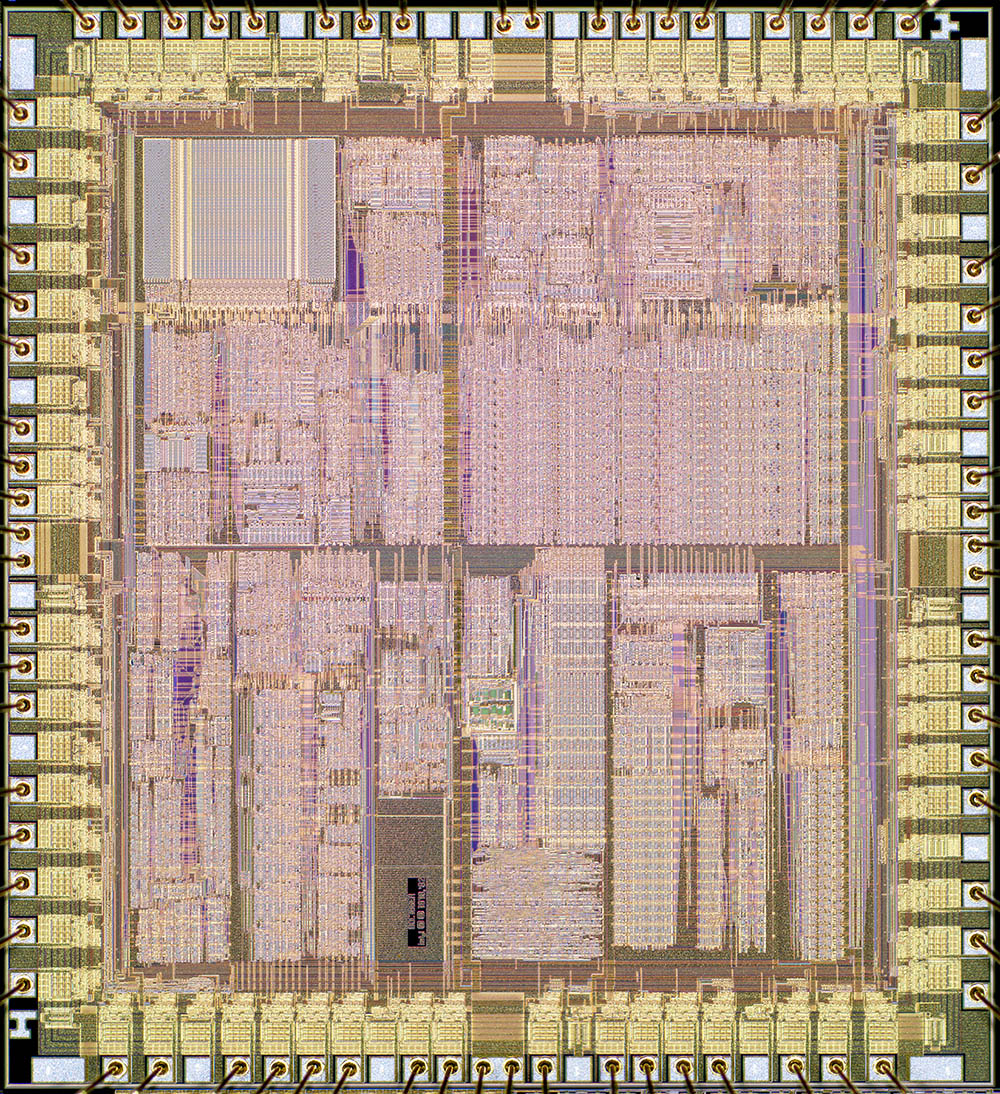

Motorola MC68332 mask J30C (1999) The MC68332 is an advanced 68k microcontroller with a 32-bit CPU32 core (bottom center). It also integrate a 16-channel timer controlled by an independent time processor unit with 2k SRAM (top half), and a queued serial module (bottom left).

Question: is there a technical name for these "macro cells" made up of several smaller cells?

GeneralPlus GPC11128A Yet another sound processor with a single metal layer. High res: ic.onidev.fr/map/GPC11128A.… Thanks to Siliconinsider for the dies.

GPC3256A, Full Adder cell, 100x oil objective, animated.

ISP1761BE | ST-ERICSON Hi-Speed USB2 Universal Serial Bus On-The-Go controller.

Intel 80C186XL (1982) A lesser known member of the x86 family, the 80C186 was a 16-bit microprocessor intended for use in embedded and industrial applications. It integrates 2 DMA channels, timers, DRAM refresh support, and is implemented on a low power fully static CMOS process.

On-Semi FD5001A: "VR13/14 Digital Multiphase Controller with PMBus."

HE83006 power speech controller High res: ic.onidev.fr/map/HE83006.ht… Thanks to Siliconinsider for the dies.

Check out in this youtube live what John McMaster has been busy developing to produce his super crisp fully automated die shots!

Seeq DQ8001 (1982). The Seeq DQ8001 EDLC (Ethernet Data Link Controller) is a very early 10Mbps Ethernet controller. It is paired with the DQ8023 physical link layer chip to form a fully integrated Ethernet solution.

Data Device Corp. MIL-STD-1553 transceiver. MIL-STD-1553 is a communication layer and protocol used to interconnect modules in military, aeronautical and space application. This module integrate the media access controller (right) and the physical layer (left) to drive the coax.

National Semiconductors LMC6034 (1994). High bandwidth, high input resistance, quadruple operational amplifier, manufactured in National's advanced double polysilicon gate CMOS process.

Texas Instruments TL082E (1995). Wide bandwidth dual JFET input operational amplifier.

HP 1FT9-0004 (1995). HP placed a hidden message in the PA-RISC 7150 microprocessor for future generations to see.

I have engaged in a fixing marathon for the past several days to get my 4 Apple 1 replicas fully working, and they now all do! They will be used for writing code and exhibits with Association MO5, Antriksh (Yoda) #NullconBerlin2025, and fred_stark. An emotional tribute seeing Steve Wozniak creation running.
