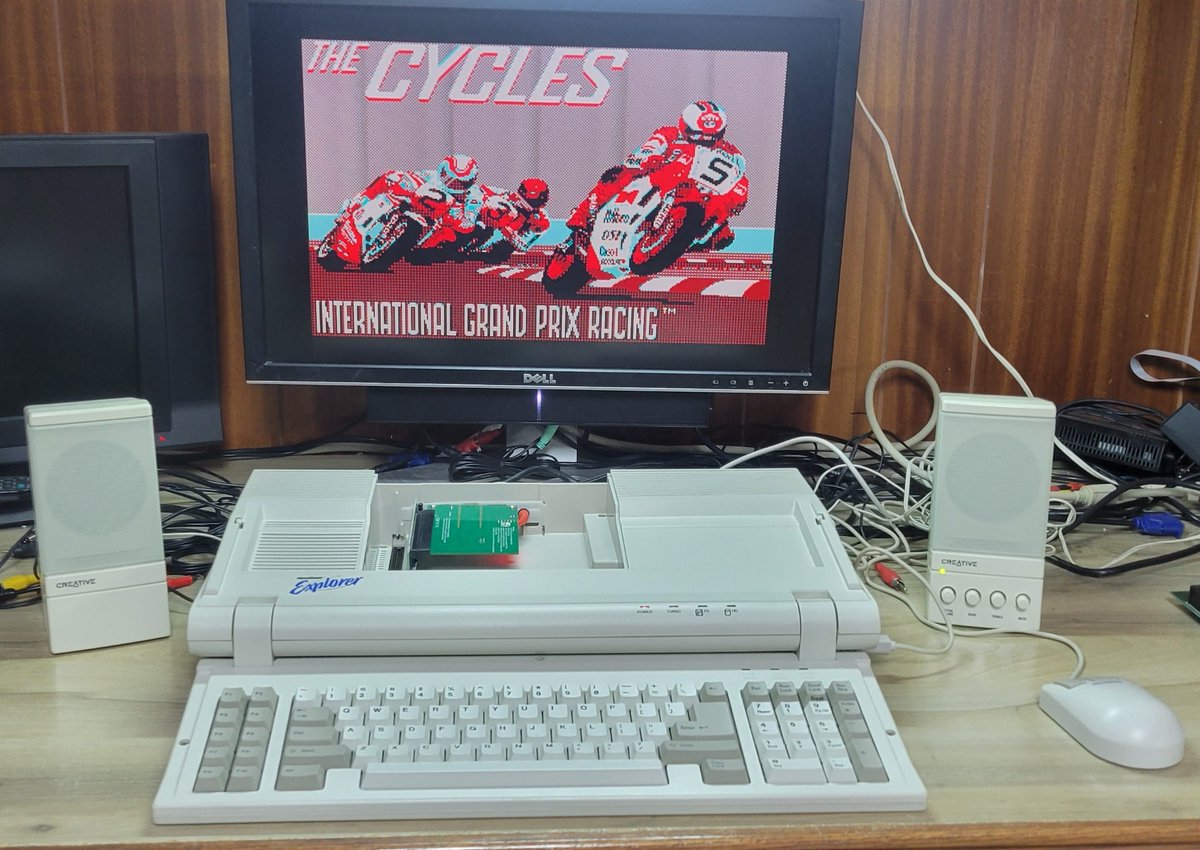

So testing with the PicoMem and Headstart Explorer. Disk functionality and Sound work. Memory extensions do not. This is a big help to this machine considering it only has one ISA slot. #retrocomputing #msdos #headstartexplorer #doscember #picomem

Latest #PicoMEM firmware testing on #Spectravideo SVI-838 X'Press16 🙂 cc: FreddyV

Hi, The new Generation PicoMEM I am testing now Boot. And has an OLED added :)

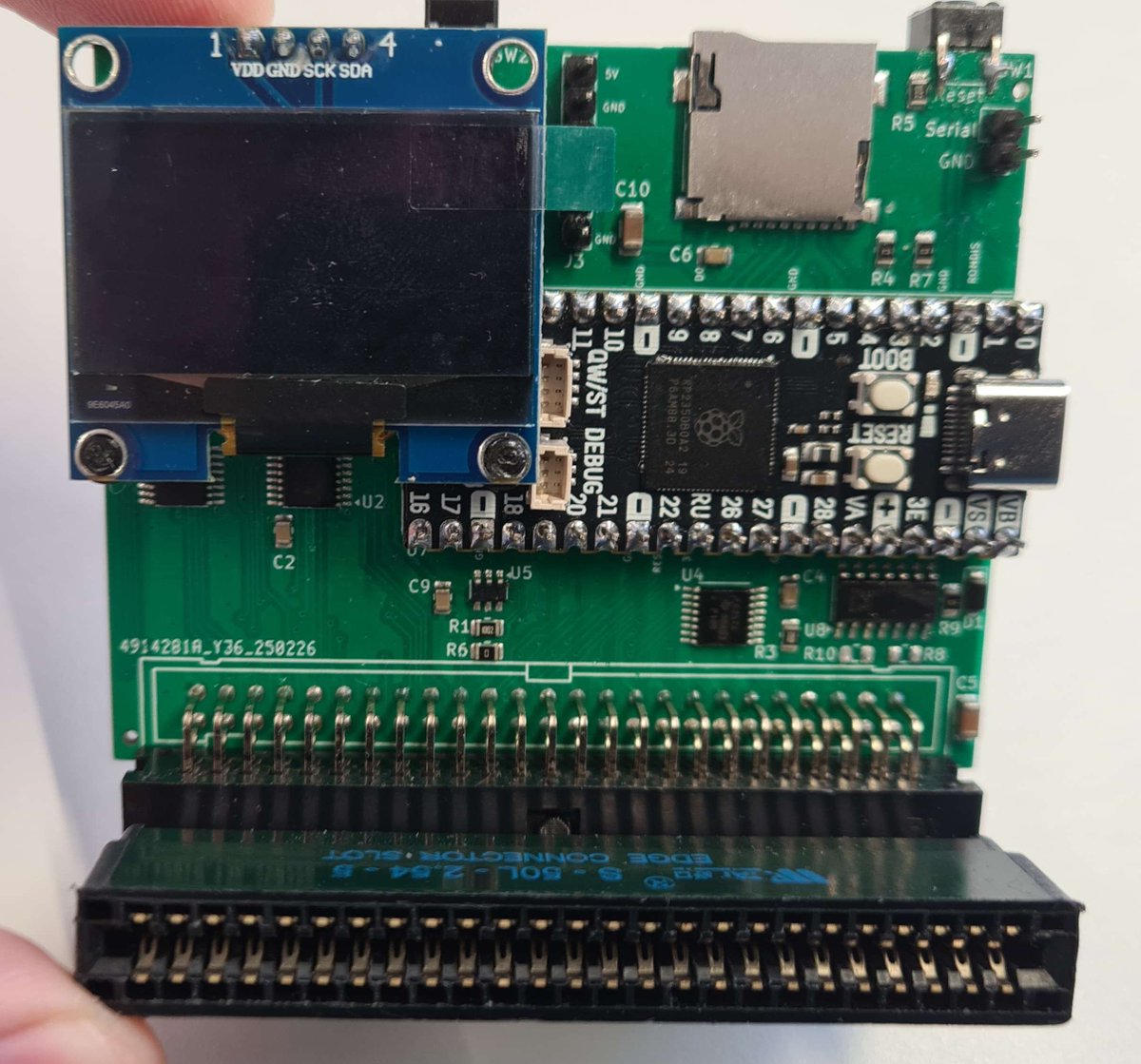

Hi, I am doing good progress on the #PicoMEM 1.5 and #PicoCPC Proto 2 is Working. Doing progress on this one as well. #amstrad #cpc

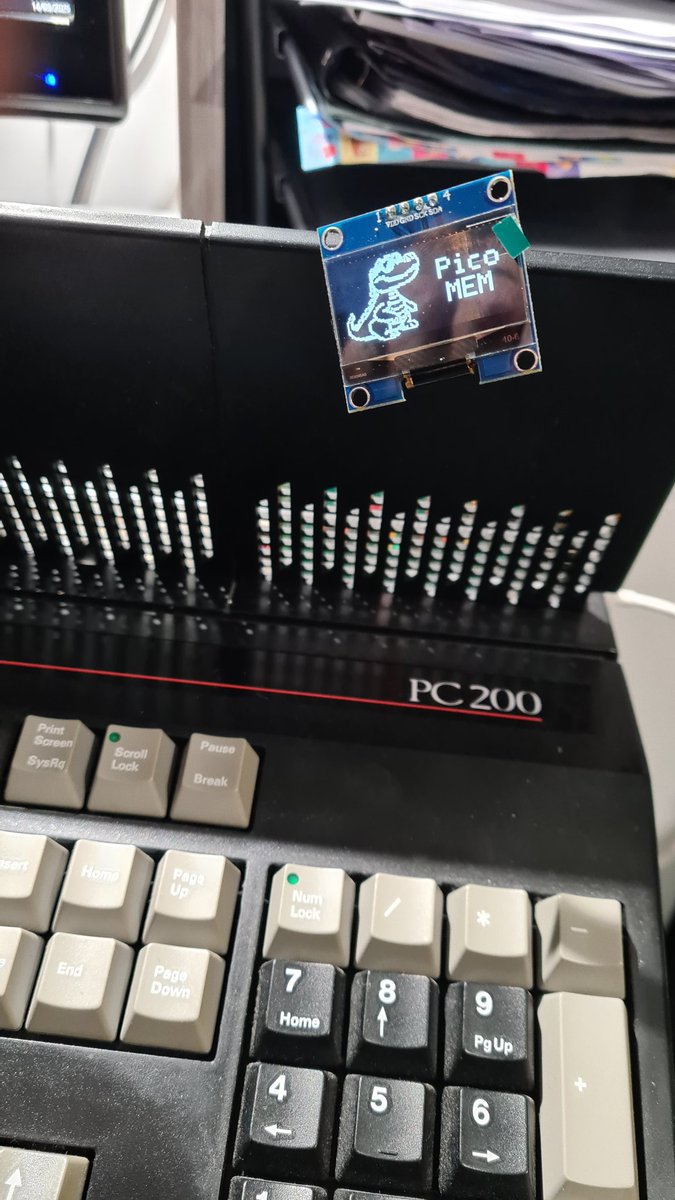

Hi, Here is what I am working on since 4 months. #Picomem 1.5 is the RP2350B Picomem. It adds: -DMA, RTC, USB A, QSPI PSRAM - Video (DVI), IC2/Buttons connector, 16MB flash This is a proto/test board for a possible PicoMEM 2 Everything tested so far work.

Hi, Rodrik #PicoCPC running SymbOS.

Working on #picomem Sound Blaster code. With Virtual DMA to work on the actual boards as well. Not simple at all, still lot of bug.

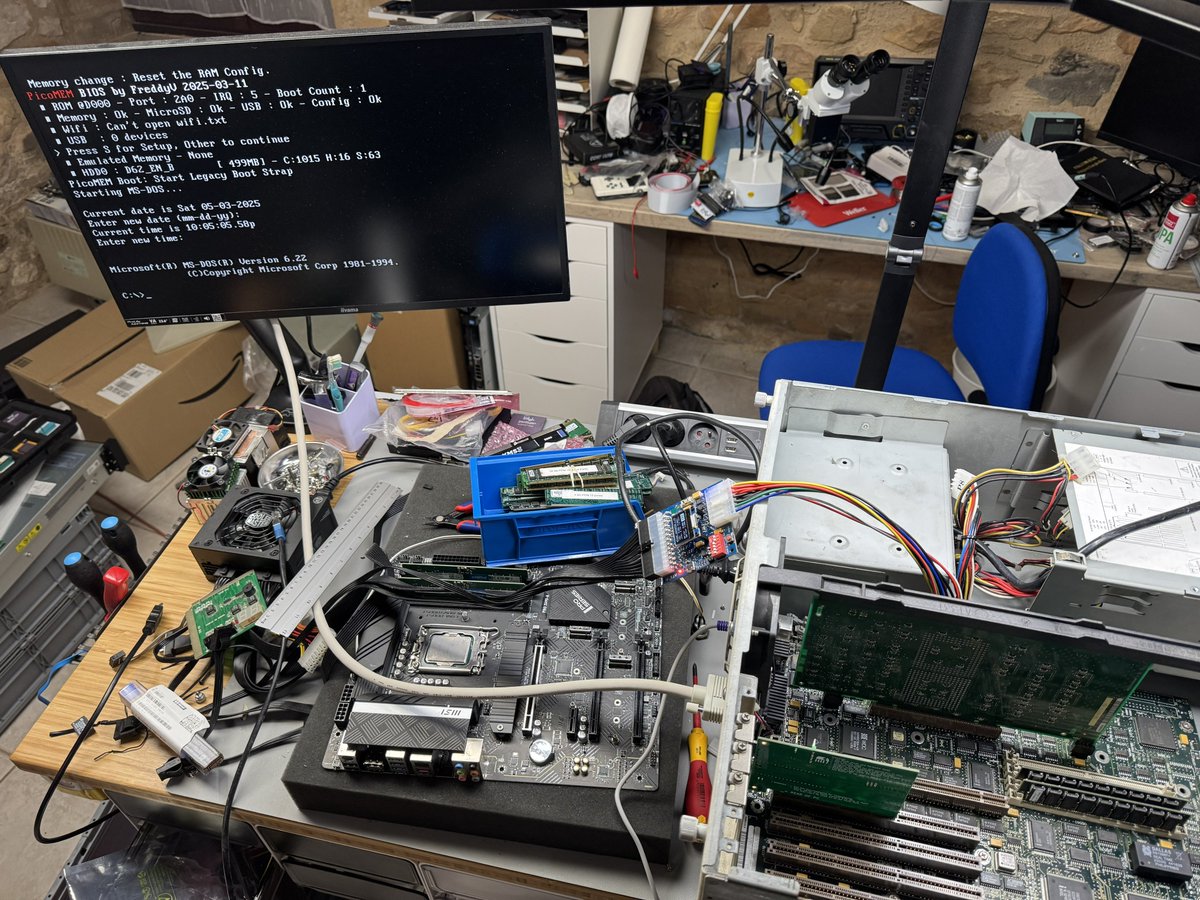

The awesome #PicoMem by FreddyV is also working fine on EISA motherboards. Here on a rare Intel Computer with a 486 DX 50 CPU.😍

Mindscape Music Board emulation in progress on the #PicoMEM (almost finished, working great) Soundcard description here: youtube.com/watch?v=Eeo4IN…

Just corrected a legacy disk boot problem on the #PicoMEM. On my test 386 machine, the Disk RESET command failed if I add one emulated Disk, because it tried to RESET 2 Disk.... So I had to modify the Nb of DISK in the BIOS before sending a RESET command....

Next #PicoMEM release BIOS menu changes:

Hi, #PicoMEM firmware (May 27) Released. - New: The rare Mindscape Music Board is added. - New: MM58167AN RTC (AST Six Pack Plus Real Time Clock) added. (Thanks to Matthew Dovey) - ! PS/2 Mouse bug corrected. - ! Legacy IDE Disk boot with a PicoMEM disk image added corrected.

Hi, RetroErik is showing the #PicoMEM news added these last 4 months in his latest video. youtube.com/watch?v=PsV6sa…

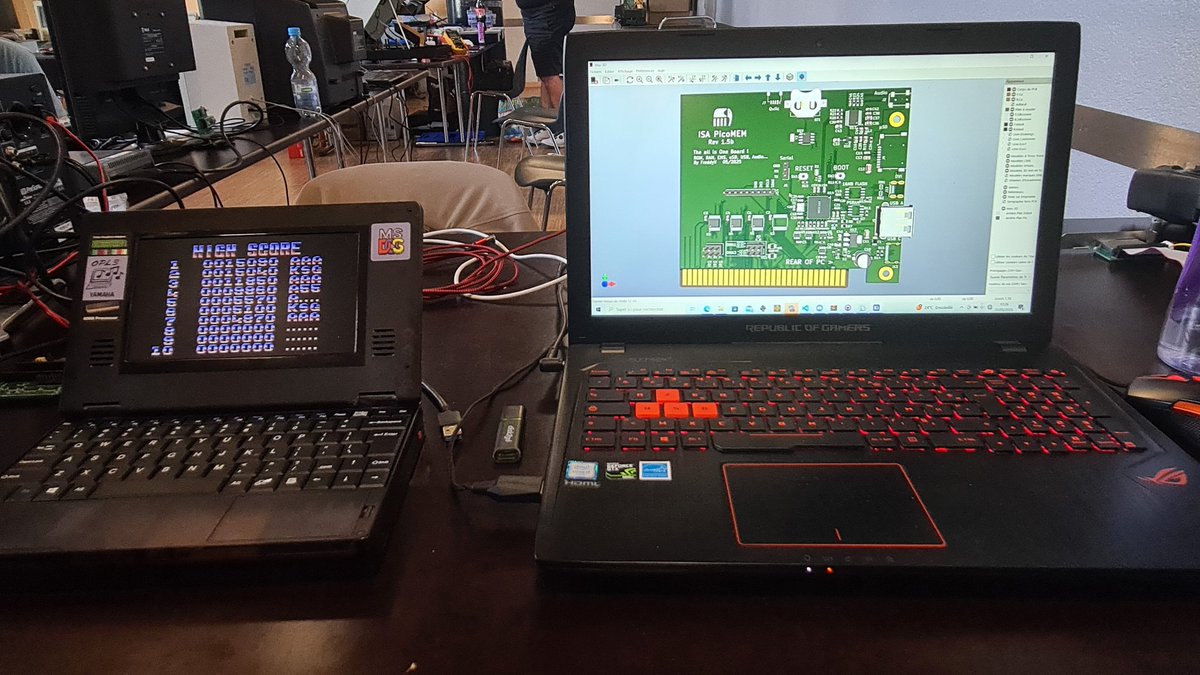

#PicoMEM demo at martygny, switzerland

#PicoMEM and #PicoCPC

#Picomem and #Picogus #pc200

Huge #PicoMEM progress. I started/stopped/started again the virtual DMA code 6 months ago. Here is Sound Blaster on a 4.77Mhz 8088. (Mod Master XT at 6khz mix)

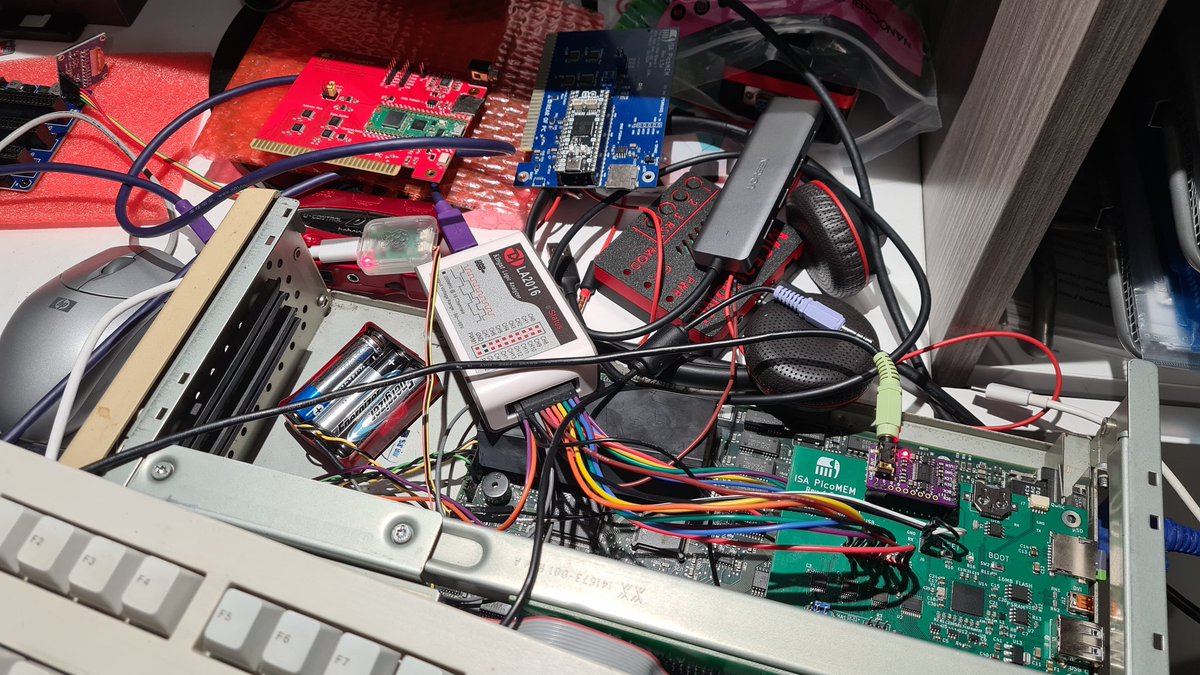

My current #PicoMEM test setup. It's the mess. With the 3 Almost unique PicoMEM 1.5, 1.3 blue, 1.2 Audio red
